Calculate SPI

Standardized Precipitation Index - Complete Tutorial

Author

Benny Istanto

Published

January 31, 2026

Overview

This tutorial demonstrates how to calculate the Standardized Precipitation Index (SPI) using TerraClimate precipitation data for Bali, Indonesia (1958-2024).

What is SPI?

Developed by McKee et al. (1993)
Transforms precipitation to standard normal distribution
Allows comparison across different climates and time scales
Bidirectional index: Negative values indicate dry conditions, positive indicate wet conditions

What you’ll learn:

Load and explore precipitation data
Visualize input data (time series and spatial patterns)
Calculate single-scale SPI (SPI-12)
Visualize SPI results with threshold lines
Save and reuse fitting parameters
Calculate multi-scale SPI (1, 3, 6, 12 months)
Compare different time scales

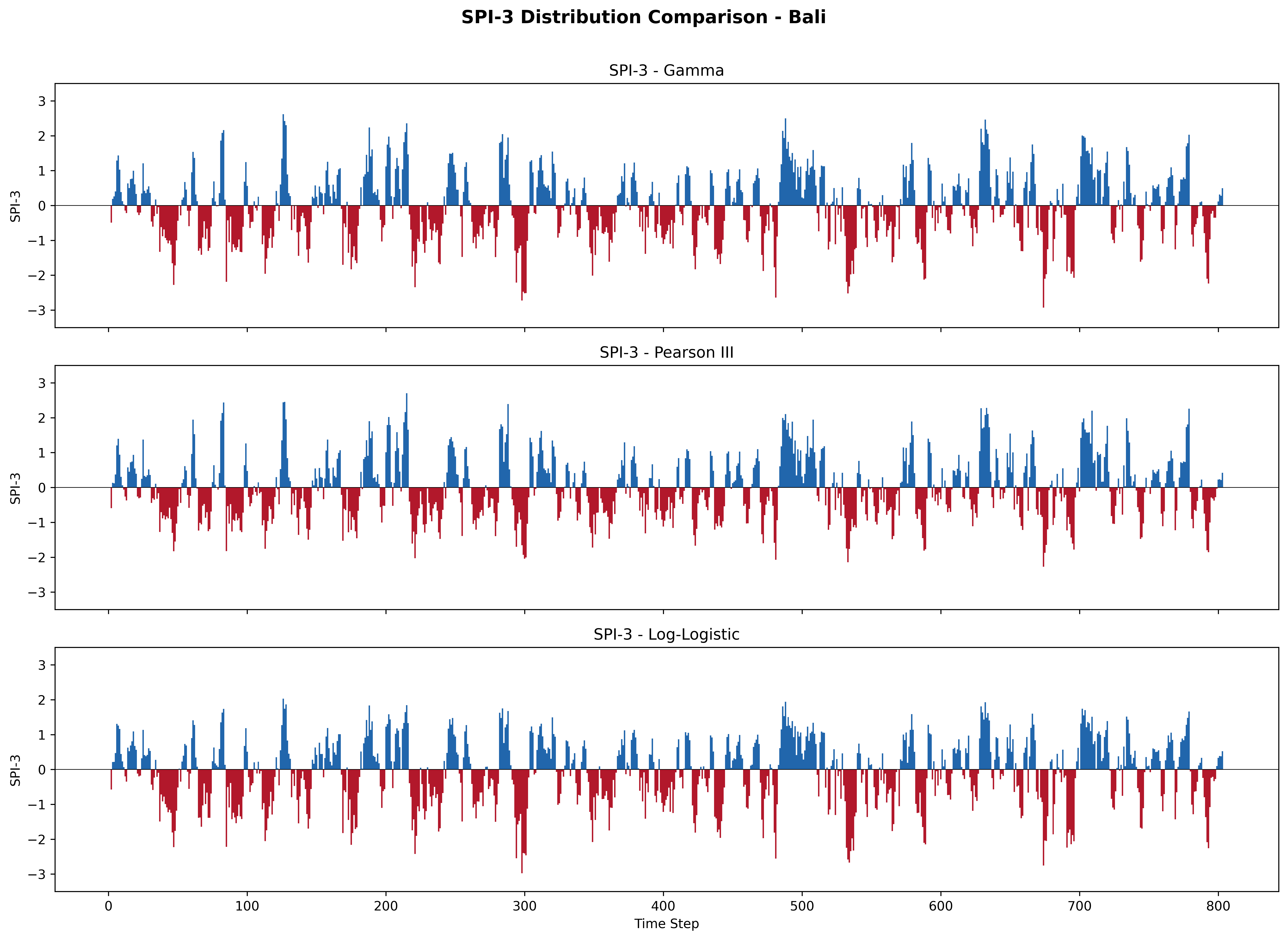

Use different probability distributions (Gamma, Pearson III, Log-Logistic)

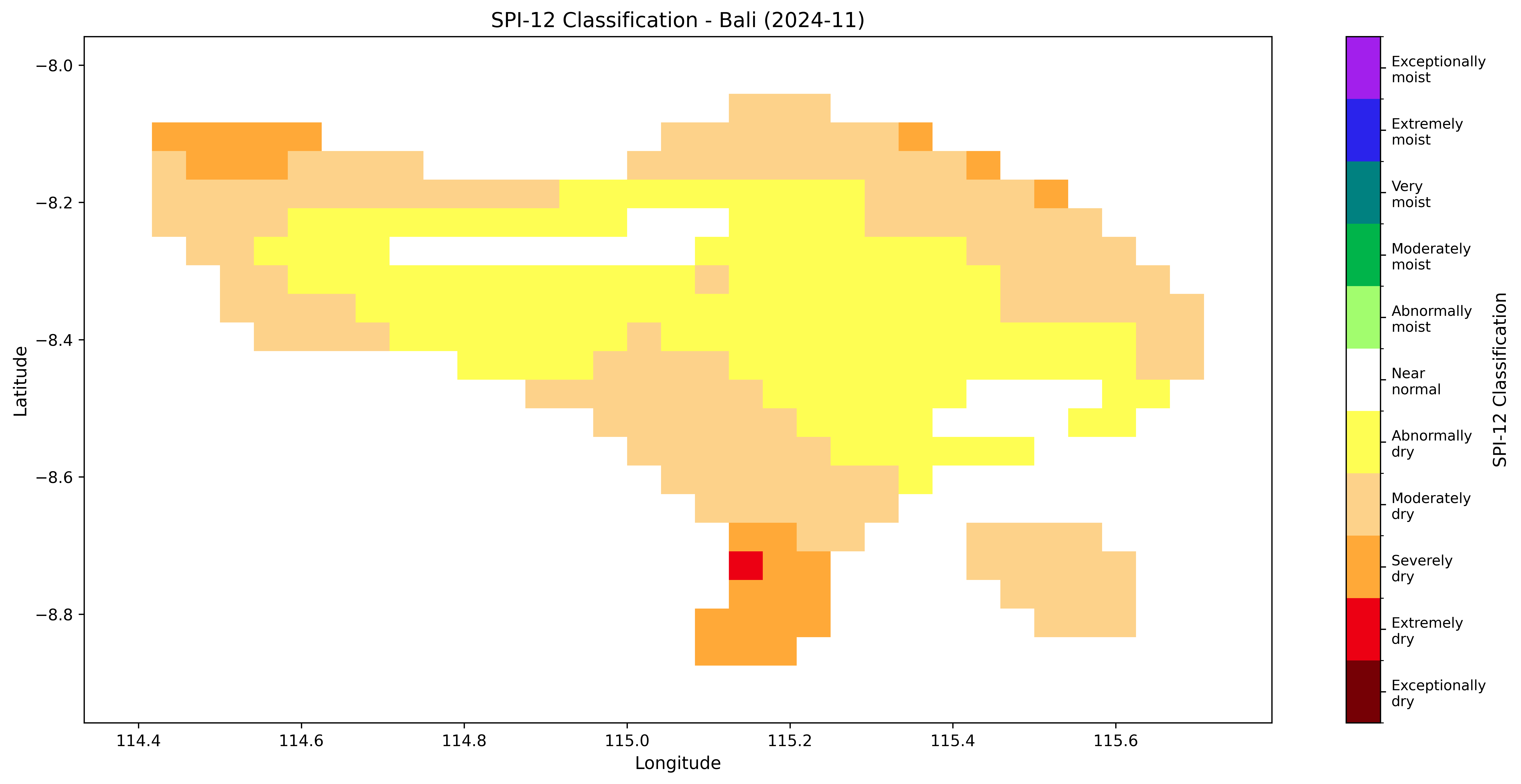

Climate extremes classification (WMO 11-category scheme)

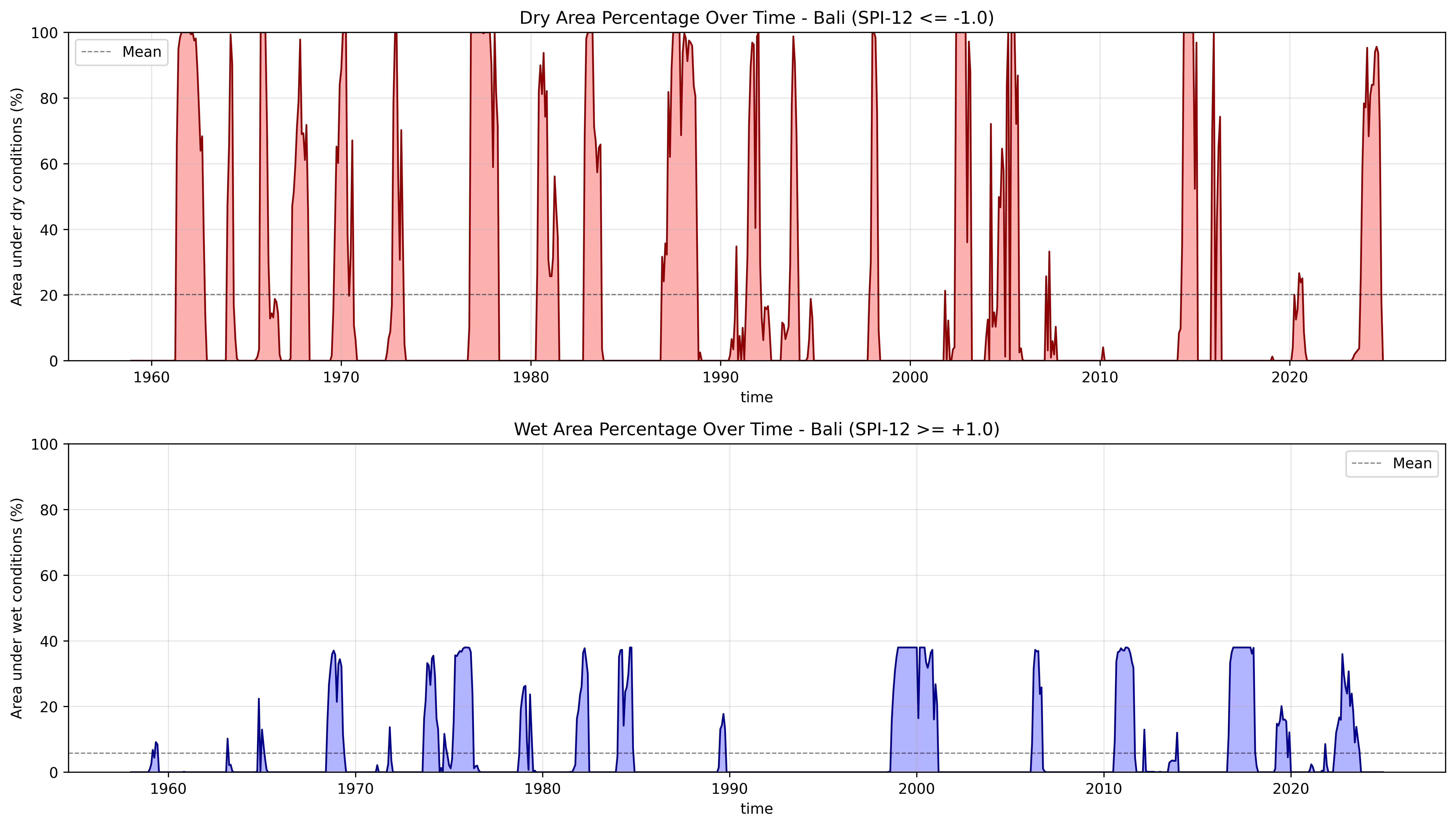

Area percentage analysis (dry and wet)
Save results to NetCDF

1. Setup and Imports

Code

import sys
import os
from pathlib import Path

# Get the notebook directory and find the repository root
notebook_dir = Path.cwd()
repo_root = notebook_dir
while not (repo_root / 'src').exists() and repo_root != repo_root.parent:
    repo_root = repo_root.parent

# Add src to path
src_path = str(repo_root / 'src')
if src_path not in sys.path:
    sys.path.insert(0, src_path)

import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
from matplotlib.colors import ListedColormap, BoundaryNorm

# Import package functions
from indices import (
    spi,
    spi_multi_scale,
    save_fitting_params,
    load_fitting_params,
    save_index_to_netcdf,
    get_drought_area_percentage
)
from config import DISTRIBUTION_DISPLAY_NAMES
from visualization import plot_index

# Plotting settings
plt.rcParams['figure.figsize'] = (12, 6)
plt.rcParams['font.size'] = 10

# Create output directories
output_plots = repo_root / 'output' / 'plots'
output_netcdf = repo_root / 'output' / 'netcdf'
output_plots.mkdir(parents=True, exist_ok=True)
output_netcdf.mkdir(parents=True, exist_ok=True)

print("All imports successful!")
print(f"Repository root: {repo_root}")

All imports successful!
Repository root: /home/runner/work/precip-index/precip-index

2. Configuration

Code

# File paths
precip_file = repo_root / 'input' / 'terraclimate_bali_ppt_1958_2024.nc'
precip_var = 'ppt'

# Calibration period (WMO standard: 1991-2020)
calib_start = 1991
calib_end = 2020

print("Configuration:")
print(f"  Precipitation file: {precip_file}")
print(f"  Variable: {precip_var}")
print(f"  Calibration period: {calib_start}-{calib_end}")

Configuration:
  Precipitation file: /home/runner/work/precip-index/precip-index/input/terraclimate_bali_ppt_1958_2024.nc
  Variable: ppt
  Calibration period: 1991-2020

3. Load Precipitation Data

Load TerraClimate monthly precipitation data for Bali.

Code

ds = xr.open_dataset(precip_file)
precip = ds[precip_var]

print("Data loaded successfully!")
print(f"\nDataset Information:")
print(f"  Shape: {precip.shape}")
print(f"  Dimensions: {precip.dims}")
print(f"  Time range: {precip.time[0].values} to {precip.time[-1].values}")
print(f"  Lat range: {float(precip.lat.min()):.2f} to {float(precip.lat.max()):.2f}")
print(f"  Lon range: {float(precip.lon.min()):.2f} to {float(precip.lon.max()):.2f}")
print(f"\nStatistics:")
print(f"  Mean: {float(precip.mean()):.1f} mm/month")
print(f"  Min: {float(precip.min()):.1f} mm/month")
print(f"  Max: {float(precip.max()):.1f} mm/month")
print(f"  Zero values: {int((precip == 0).sum())} ({100 * float((precip == 0).sum() / precip.size):.1f}%)")

Data loaded successfully!

Dataset Information:
  Shape: (804, 24, 35)
  Dimensions: ('time', 'lat', 'lon')
  Time range: 1958-01-01T00:00:00.000000000 to 2024-12-01T00:00:00.000000000
  Lat range: -8.94 to -7.98
  Lon range: 114.35 to 115.77

Statistics:
  Mean: 158.6 mm/month
  Min: 0.0 mm/month
  Max: 1004.7 mm/month
  Zero values: 0 (0.0%)

Data Format

The precipitation data is in NetCDF format with dimensions (time, lat, lon). TerraClimate provides monthly precipitation in mm/month at ~4km resolution.

Visualize Precipitation Data

Code

# Select a sample location (center of Bali)
sample_lat_idx = len(precip.lat) // 2
sample_lon_idx = len(precip.lon) // 2

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(14, 14))

# Time series at sample point
precip[:, sample_lat_idx, sample_lon_idx].plot(ax=ax1, linewidth=0.8)
ax1.set_title(f'Precipitation Time Series - Bali (lat={float(precip.lat[sample_lat_idx]):.2f}, lon={float(precip.lon[sample_lon_idx]):.2f})')
ax1.set_ylabel('Precipitation (mm/month)')
ax1.grid(True, alpha=0.3)

# Spatial pattern (mean over time)
precip.mean(dim='time').plot(ax=ax2, cmap='YlGnBu', cbar_kwargs={'label': 'mm/month'})
ax2.set_title('Mean Precipitation (1958-2024) - Bali, Indonesia')
ax2.set_xlabel('Longitude')
ax2.set_ylabel('Latitude')

plt.tight_layout()
plt.show()

The top panel shows the monthly precipitation time series at a single grid cell. The strong seasonal cycle is visible — Bali has distinct wet (November-March) and dry (April-October) seasons. The bottom panel shows the spatial pattern of mean precipitation across the island.

4. Calculate SPI-12

Calculate SPI at 12-month timescale for long-term water resources monitoring.

Code

print("Calculating SPI-12 (Gamma distribution)...")

spi_12, params = spi(
    precip,
    scale=12,
    periodicity='monthly',
    calibration_start_year=calib_start,
    calibration_end_year=calib_end,
    distribution='gamma',  # Default; also supports 'pearson3', 'log_logistic'
    return_params=True  # Return fitting parameters for saving
)

print("SPI-12 calculation complete!")
print(f"\nOutput Information:")
print(f"  Shape: {spi_12.shape}")
print(f"  Valid range: [{float(spi_12.min()):.2f}, {float(spi_12.max()):.2f}]")
print(f"  Mean: {float(spi_12.mean()):.3f}")
print(f"  Std: {float(spi_12.std()):.3f}")
print(f"  NaN values: {int(np.isnan(spi_12).sum())} ({100 * float(np.isnan(spi_12).sum() / spi_12.size):.1f}%)")

Calculating SPI-12 (Gamma distribution)...
SPI-12 calculation complete!

Output Information:
  Shape: (804, 24, 35)
  Valid range: [-2.99, 2.71]
  Mean: -0.083
  Std: 0.992
  NaN values: 422393 (62.5%)

Calibration Period

We use 1991-2020 as the calibration period (30 years) following WMO recommendations. This period is used to fit the probability distribution. NaN values come from two sources: (1) the first 11 months where SPI-12 cannot be calculated, and (2) ocean grid cells with no data.

Visualize SPI-12 Results

Code

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(14, 12))

# Time series at sample point
spi_12[:, sample_lat_idx, sample_lon_idx].plot(ax=ax1, linewidth=0.8, color='steelblue')
ax1.axhline(y=0, color='k', linestyle='-', linewidth=0.8, alpha=0.3)
ax1.axhline(y=-1.0, color='orange', linestyle='--', linewidth=0.8, alpha=0.5, label='Moderate dry/wet')
ax1.axhline(y=-2.0, color='red', linestyle='--', linewidth=0.8, alpha=0.5, label='Severe dry/wet')
ax1.axhline(y=1.0, color='orange', linestyle='--', linewidth=0.8, alpha=0.5)
ax1.axhline(y=2.0, color='red', linestyle='--', linewidth=0.8, alpha=0.5)
ax1.fill_between(spi_12.time, -10, 0, alpha=0.1, color='red', label='Dry')
ax1.fill_between(spi_12.time, 0, 10, alpha=0.1, color='blue', label='Wet')
ax1.set_title(f'SPI-12 Time Series - Bali (lat={float(precip.lat[sample_lat_idx]):.2f}, lon={float(precip.lon[sample_lon_idx]):.2f})')
ax1.set_ylabel('SPI-12')
ax1.set_ylim(-3, 3)
ax1.grid(True, alpha=0.3)
ax1.legend(loc='upper right', fontsize=9)

# Spatial pattern (mean over time)
spi_12.mean(dim='time').plot(ax=ax2, cmap='RdYlBu', vmin=-1, vmax=1,
                              cbar_kwargs={'label': 'Mean SPI-12'})
ax2.set_title('Mean SPI-12 (1958-2024) - Bali, Indonesia')
ax2.set_xlabel('Longitude')
ax2.set_ylabel('Latitude')

plt.tight_layout()
plt.show()

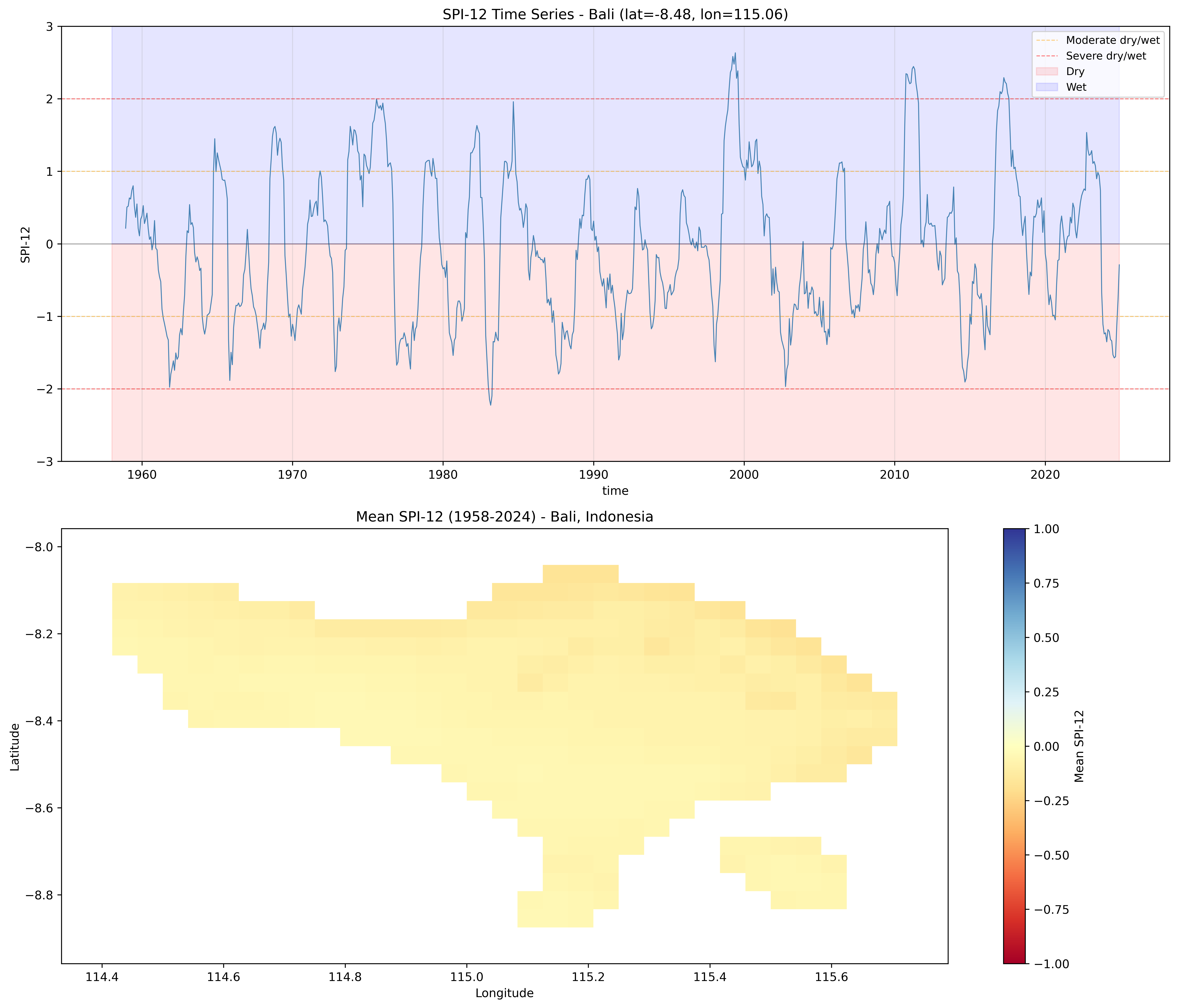

The top panel shows the SPI-12 time series with threshold lines for moderate (+-1.0) and severe (+-2.0) conditions. Red shading indicates dry periods, blue indicates wet. The bottom panel shows the spatial mean SPI-12 across Bali.

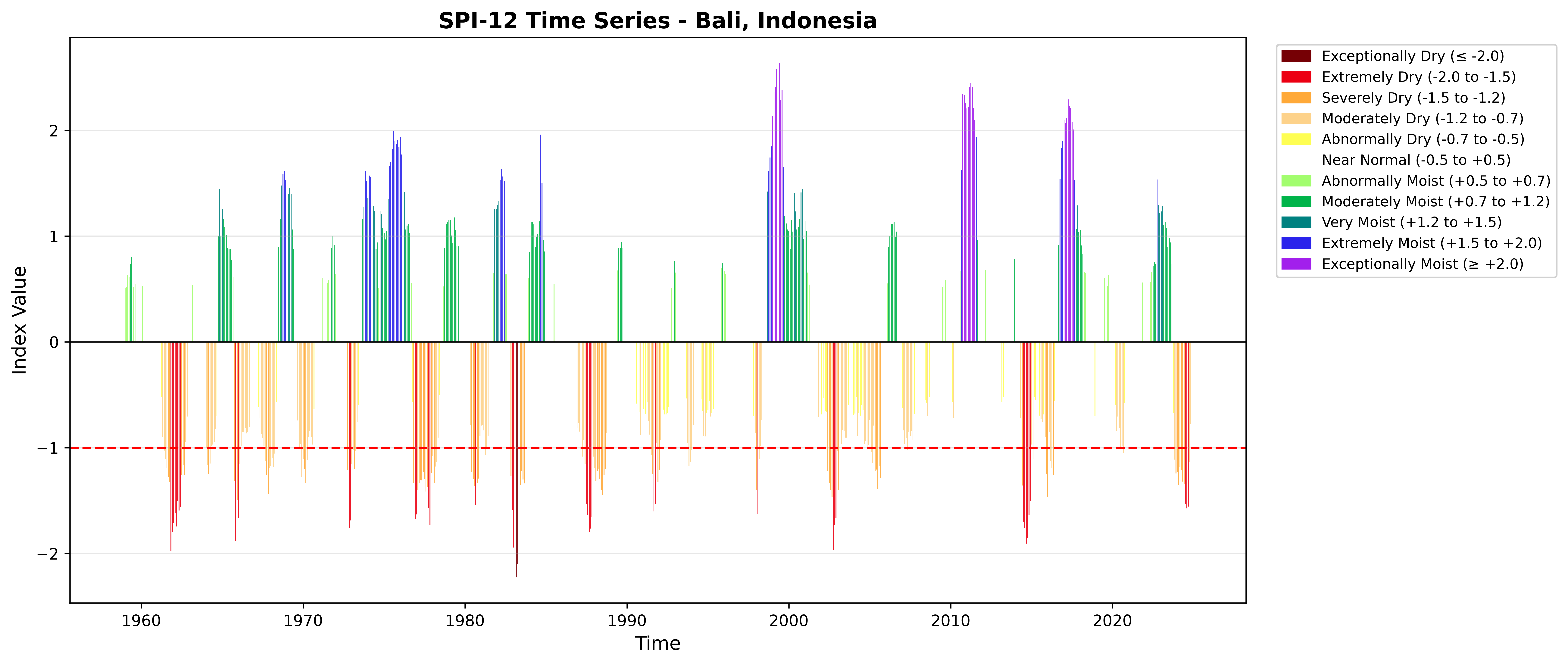

SPI-12 with WMO Color Scheme

The plot_index() function produces a standardized bar chart with the WMO 11-category color scheme.

Code

spi_point = spi_12.isel(lat=sample_lat_idx, lon=sample_lon_idx)

fig = plot_index(
    spi_point,
    threshold=-1.0,
    title='SPI-12 Time Series - Bali, Indonesia'
)
plt.tight_layout()
plt.show()

5. Save and Reuse Fitting Parameters

Gamma fitting parameters can be saved and reused to speed up calculations on new data with the same calibration period.

Code

# Save parameters
param_file = str(output_netcdf / 'spi_gamma_params_12_month_bali.nc')

save_fitting_params(
    params,
    param_file,
    scale=12,
    periodicity='monthly',
    index_type='spi',
    calibration_start_year=calib_start,
    calibration_end_year=calib_end,
    coords={'lat': precip.lat, 'lon': precip.lon},
    distribution='gamma'
)

print(f"Parameters saved to: {param_file}")

# Load parameters
loaded_params = load_fitting_params(param_file, scale=12, periodicity='monthly')
print(f"Parameters loaded successfully")
print(f"  Alpha shape: {loaded_params['alpha'].shape}")
print(f"  Beta shape: {loaded_params['beta'].shape}")
print(f"  Prob_zero shape: {loaded_params['prob_zero'].shape}")

Parameters saved to: /home/runner/work/precip-index/precip-index/output/netcdf/spi_gamma_params_12_month_bali.nc
Parameters loaded successfully
  Alpha shape: (12, 24, 35)
  Beta shape: (12, 24, 35)
  Prob_zero shape: (12, 24, 35)

Use Pre-computed Parameters (Faster)

Code

print("Calculating SPI-12 with pre-computed parameters...")

spi_12_fast = spi(
    precip,
    scale=12,
    periodicity='monthly',
    fitting_params=loaded_params
)

print("Calculation complete!")

# Verify results are identical
diff = np.abs(spi_12.values - spi_12_fast.values)
max_diff = np.nanmax(diff)
print(f"  Max difference from original: {max_diff:.10f}")
print("  Results are identical!" if max_diff < 1e-6 else "  Warning: Results differ!")

Calculating SPI-12 with pre-computed parameters...
Calculation complete!
  Max difference from original: 0.0000000000
  Results are identical!

Performance Benefits

Using saved parameters is 5-10x faster than refitting, ideal for operational monitoring where you update with new data regularly.

6. Calculate Multi-Scale SPI

Different time scales capture different types of climate extremes:

SPI-1: Short-term meteorological (precipitation deficit/excess)
SPI-3: Seasonal agricultural (crop water stress/flooding)
SPI-6: Medium-term hydrological (reservoir/groundwater)
SPI-12: Long-term water resources (multi-year planning)

Code

print("Calculating SPI for scales: 1, 3, 6, 12 months...")

spi_multi = spi_multi_scale(
    precip,
    scales=[1, 3, 6, 12],
    periodicity='monthly',
    calibration_start_year=calib_start,
    calibration_end_year=calib_end
)

print("Multi-scale SPI calculation complete!")
print(f"  Variables: {list(spi_multi.data_vars)}")

Calculating SPI for scales: 1, 3, 6, 12 months...

Multi-scale SPI calculation complete!
  Variables: ['spi_gamma_1_month', 'spi_gamma_3_month', 'spi_gamma_6_month', 'spi_gamma_12_month']

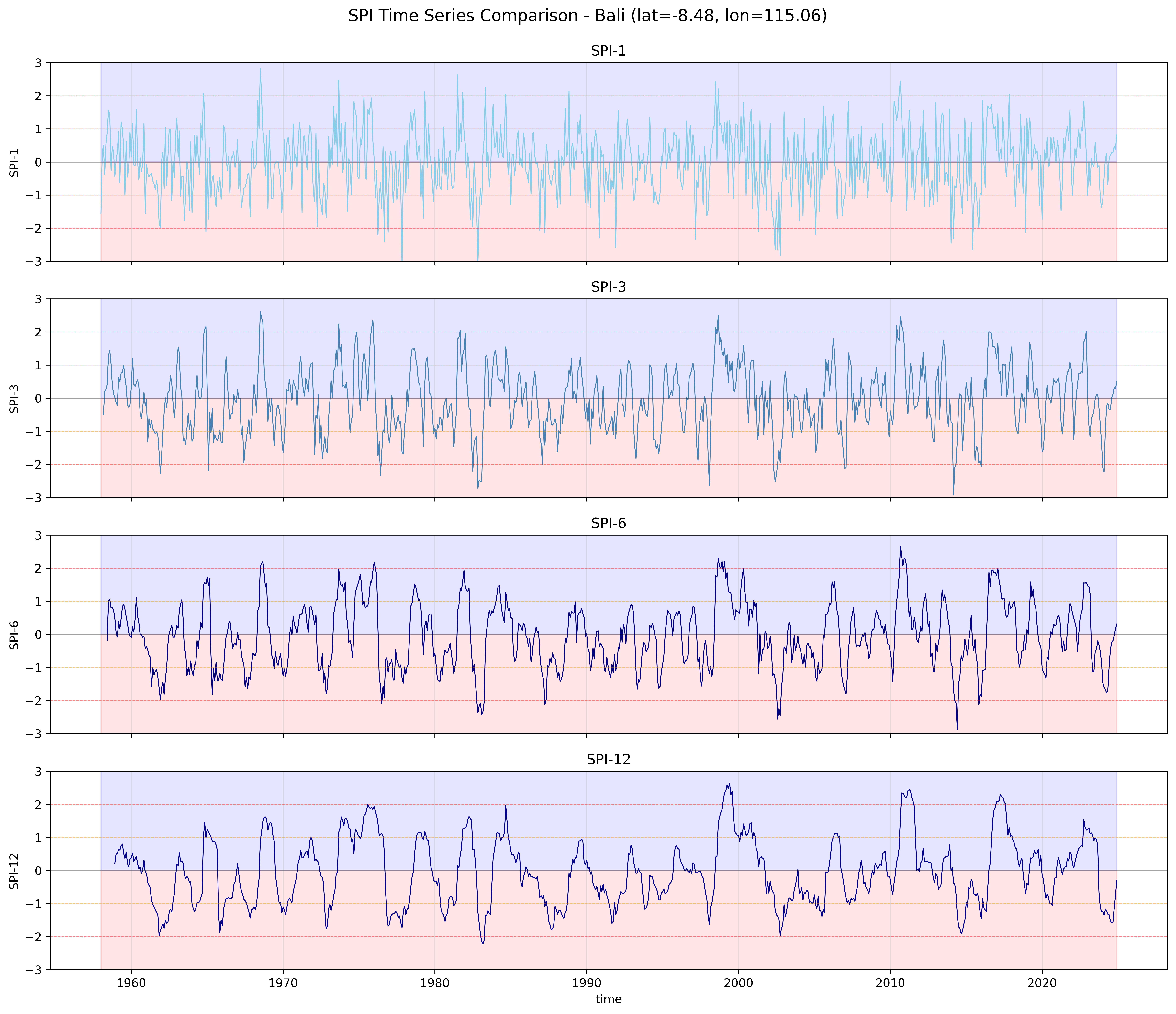

Compare Different Time Scales

Code

fig, axes = plt.subplots(4, 1, figsize=(14, 12), sharex=True)

scales = [1, 3, 6, 12]
colors = ['skyblue', 'steelblue', 'navy', 'darkblue']

for i, (scale, color) in enumerate(zip(scales, colors)):
    var_name = f'spi_gamma_{scale}_month'
    spi_data = spi_multi[var_name]

    spi_data[:, sample_lat_idx, sample_lon_idx].plot(
        ax=axes[i],
        linewidth=0.8,
        color=color
    )

    axes[i].axhline(y=0, color='k', linestyle='-', linewidth=0.8, alpha=0.3)
    axes[i].axhline(y=-1.0, color='orange', linestyle='--', linewidth=0.6, alpha=0.4)
    axes[i].axhline(y=-2.0, color='red', linestyle='--', linewidth=0.6, alpha=0.4)
    axes[i].axhline(y=1.0, color='orange', linestyle='--', linewidth=0.6, alpha=0.4)
    axes[i].axhline(y=2.0, color='red', linestyle='--', linewidth=0.6, alpha=0.4)
    axes[i].fill_between(spi_data.time, -10, 0, alpha=0.1, color='red')
    axes[i].fill_between(spi_data.time, 0, 10, alpha=0.1, color='blue')

    axes[i].set_title(f'SPI-{scale}')
    axes[i].set_ylabel(f'SPI-{scale}')
    axes[i].set_ylim(-3, 3)
    axes[i].grid(True, alpha=0.3)

    if i < 3:
        axes[i].set_xlabel('')

plt.suptitle(f'SPI Time Series Comparison - Bali (lat={float(precip.lat[sample_lat_idx]):.2f}, lon={float(precip.lon[sample_lon_idx]):.2f})',
             fontsize=14, y=0.995)
plt.tight_layout()
plt.show()

print("\nObservations:")
print("  - SPI-1 shows high frequency variability (month-to-month)")
print("  - SPI-12 shows smoother, longer-term trends")
print("  - Extreme events persist longer at longer time scales")


Observations:
  - SPI-1 shows high frequency variability (month-to-month)
  - SPI-12 shows smoother, longer-term trends
  - Extreme events persist longer at longer time scales

Time Scale Interpretation

SPI-1: Month-to-month meteorological anomalies
SPI-3: Seasonal agricultural drought
SPI-6: Medium-term agricultural/hydrological drought
SPI-12: Long-term hydrological drought (water resources)

7. Multi-Distribution Support

The spi() function supports three probability distributions. Each uses its optimal fitting method:

Distribution	Parameter	Fitting Method	Best For
Gamma	`'gamma'`	Method of Moments	Standard SPI (McKee et al. 1993)
Pearson III	`'pearson3'`	Method of Moments	Skewed precipitation data
Log-Logistic	`'log_logistic'`	Maximum Likelihood (MLE)	Better tail behavior

Code

# Calculate SPI-3 with each distribution
spi3_results = {}

for dist in ['gamma', 'pearson3', 'log_logistic']:
    dist_name = DISTRIBUTION_DISPLAY_NAMES[dist]
    spi_3 = spi(
        precip,
        scale=3,
        periodicity='monthly',
        calibration_start_year=calib_start,
        calibration_end_year=calib_end,
        distribution=dist
    )
    spi3_results[dist] = spi_3
    print(f"  {dist_name}: range [{float(spi_3.min()):.2f}, {float(spi_3.max()):.2f}], mean={float(spi_3.mean()):.3f}")

  Gamma: range [-3.09, 3.02], mean=-0.044

  Pearson III: range [-2.86, 3.09], mean=-0.028

  Log-Logistic: range [-3.09, 2.20], mean=-0.084

Compare Distributions

Code

fig, axes = plt.subplots(3, 1, figsize=(14, 10), sharex=True, sharey=True)

for ax, dist in zip(axes, ['gamma', 'pearson3', 'log_logistic']):
    dist_name = DISTRIBUTION_DISPLAY_NAMES[dist]
    data = spi3_results[dist][:, sample_lat_idx, sample_lon_idx].values
    colors = np.where(data >= 0, '#2166ac', '#b2182b')
    ax.bar(range(len(data)), data, color=colors, width=1.0, edgecolor='none')
    ax.axhline(y=0, color='black', linewidth=0.5)
    ax.set_ylabel('SPI-3')
    ax.set_title(f'SPI-3 - {dist_name}')
    ax.set_ylim(-3.5, 3.5)

axes[-1].set_xlabel('Time Step')
plt.suptitle(f'SPI-3 Distribution Comparison - Bali', fontsize=14, fontweight='bold', y=1.01)
plt.tight_layout()
plt.show()

Choosing a Distribution

Gamma is the standard choice for SPI and works well for most precipitation datasets.
Pearson III can handle more skewed data and is recommended for SPEI.
Log-Logistic provides better modeling of extreme tails and is useful when you care about the most extreme events.

All three distributions produce highly correlated results (r > 0.98). The choice matters most at the extremes.

8. Climate Extremes Classification

The WMO 11-category classification scheme works for both dry and wet extremes.

Code

print("SPI-12 Classification (11 Categories):")
print("=" * 60)
print("  -2.00 and below    : Exceptionally dry")
print("  -2.00 to -1.50     : Extremely dry")
print("  -1.50 to -1.20     : Severely dry")
print("  -1.20 to -0.70     : Moderately dry")
print("  -0.70 to -0.50     : Abnormally dry")
print("  -0.50 to +0.50     : Near normal")
print("  +0.50 to +0.70     : Abnormally moist")
print("  +0.70 to +1.20     : Moderately moist")
print("  +1.20 to +1.50     : Very moist")
print("  +1.50 to +2.00     : Extremely moist")
print("  +2.00 and above    : Exceptionally moist")
print()

# Count occurrences by category
print("Frequency Distribution (Bali, 1958-2024):")
print("=" * 60)

bounds = [-3.0, -2.0, -1.5, -1.2, -0.7, -0.5, 0.5, 0.7, 1.2, 1.5, 2.0, 3.0]
categories = [
    'Exceptionally dry', 'Extremely dry', 'Severely dry',
    'Moderately dry', 'Abnormally dry', 'Near normal',
    'Abnormally moist', 'Moderately moist', 'Very moist',
    'Extremely moist', 'Exceptionally moist'
]

valid_values = spi_12.values[~np.isnan(spi_12.values)]
total_count = len(valid_values)

for i in range(len(bounds) - 1):
    lower = bounds[i]
    upper = bounds[i + 1]

    if i == 0:
        count = np.sum(valid_values <= upper)
    elif i == len(bounds) - 2:
        count = np.sum(valid_values > lower)
    else:
        count = np.sum((valid_values > lower) & (valid_values <= upper))

    pct = 100 * count / total_count
    print(f"  {categories[i]:20s}: {count:6d} ({pct:5.1f}%)")

SPI-12 Classification (11 Categories):
============================================================
  -2.00 and below    : Exceptionally dry
  -2.00 to -1.50     : Extremely dry
  -1.50 to -1.20     : Severely dry
  -1.20 to -0.70     : Moderately dry
  -0.70 to -0.50     : Abnormally dry
  -0.50 to +0.50     : Near normal
  +0.50 to +0.70     : Abnormally moist
  +0.70 to +1.20     : Moderately moist
  +1.20 to +1.50     : Very moist
  +1.50 to +2.00     : Extremely moist
  +2.00 and above    : Exceptionally moist

Frequency Distribution (Bali, 1958-2024):
============================================================
  Exceptionally dry   :   2793 (  1.1%)
  Extremely dry       :  13699 (  5.4%)
  Severely dry        :  18768 (  7.4%)
  Moderately dry      :  40964 ( 16.2%)
  Abnormally dry      :  17328 (  6.8%)
  Near normal         :  88124 ( 34.8%)
  Abnormally moist    :  14306 (  5.7%)
  Moderately moist    :  28840 ( 11.4%)
  Very moist          :  12321 (  4.9%)
  Extremely moist     :   9634 (  3.8%)
  Exceptionally moist :   6190 (  2.4%)

Visualize Climate Extremes Categories

Code

time_idx = -2  # Recent month

fig, ax = plt.subplots(figsize=(14, 7))

# WMO-style colors (11 categories)
wmo_colors = [
    '#760005',  # Exceptionally dry
    '#ec0013',  # Extremely dry
    '#ffa938',  # Severely dry
    '#fdd28a',  # Moderately dry
    '#fefe53',  # Abnormally dry
    '#ffffff',  # Near normal
    '#a2fd6e',  # Abnormally moist
    '#00b44a',  # Moderately moist
    '#008180',  # Very moist
    '#2a23eb',  # Extremely moist
    '#a21fec'   # Exceptionally moist
]

cmap = ListedColormap(wmo_colors)
norm = BoundaryNorm(bounds, cmap.N)

spi_data = spi_12.isel(time=time_idx)
lon_2d, lat_2d = np.meshgrid(spi_12.lon.values, spi_12.lat.values)

im = ax.pcolormesh(lon_2d, lat_2d, spi_data.values, cmap=cmap, norm=norm, shading='auto')

cbar = plt.colorbar(im, ax=ax, ticks=[-2.5, -1.75, -1.35, -0.95, -0.6, 0, 0.6, 0.95, 1.35, 1.75, 2.5])
cbar.set_label('SPI-12 Classification', fontsize=11)
cbar.ax.set_yticklabels([
    'Exceptionally\ndry', 'Extremely\ndry', 'Severely\ndry',
    'Moderately\ndry', 'Abnormally\ndry', 'Near\nnormal',
    'Abnormally\nmoist', 'Moderately\nmoist', 'Very\nmoist',
    'Extremely\nmoist', 'Exceptionally\nmoist'
], fontsize=9)

ax.set_title(f'SPI-12 Classification - Bali ({str(spi_12.time[time_idx].values)[:7]})', fontsize=13)
ax.set_xlabel('Longitude', fontsize=11)
ax.set_ylabel('Latitude', fontsize=11)

plt.tight_layout()
plt.show()

This spatial map uses the WMO 11-category color scheme to classify each grid cell. Dark red indicates exceptionally dry conditions, dark purple indicates exceptionally moist conditions. Ocean cells appear as white (no data).

9. Area Percentage Analysis

Calculate the percentage of area experiencing dry or wet conditions over time.

Code

# Dry area percentage (SPI <= -1.0)
dry_pct = get_drought_area_percentage(spi_12, threshold=-1.0)

# Wet area percentage (SPI >= +1.0)
wet_pct = 100 * (spi_12 >= 1.0).sum(dim=['lat', 'lon']) / (spi_12.sizes['lat'] * spi_12.sizes['lon'])

print(f"Dry Area Statistics (SPI <= -1.0):")
print(f"  Mean: {float(dry_pct.mean()):.1f}%")
print(f"  Max: {float(dry_pct.max()):.1f}%")
print(f"  Min: {float(dry_pct.min()):.1f}%")

print(f"\nWet Area Statistics (SPI >= +1.0):")
print(f"  Mean: {float(wet_pct.mean()):.1f}%")
print(f"  Max: {float(wet_pct.max()):.1f}%")
print(f"  Min: {float(wet_pct.min()):.1f}%")

Dry Area Statistics (SPI <= -1.0):
  Mean: 20.2%
  Max: 100.0%
  Min: 0.0%

Wet Area Statistics (SPI >= +1.0):
  Mean: 5.8%
  Max: 38.0%
  Min: 0.0%

Code

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(14, 8))

# Dry area
dry_pct.plot(ax=ax1, linewidth=1.2, color='darkred')
ax1.axhline(y=dry_pct.mean(), color='k', linestyle='--', linewidth=0.8, alpha=0.5, label='Mean')
ax1.fill_between(dry_pct.time, 0, dry_pct, alpha=0.3, color='red')
ax1.set_title('Dry Area Percentage Over Time - Bali (SPI-12 <= -1.0)', fontsize=12)
ax1.set_ylabel('Area under dry conditions (%)')
ax1.set_ylim(0, 100)
ax1.grid(True, alpha=0.3)
ax1.legend()

# Wet area
wet_pct.plot(ax=ax2, linewidth=1.2, color='darkblue')
ax2.axhline(y=wet_pct.mean(), color='k', linestyle='--', linewidth=0.8, alpha=0.5, label='Mean')
ax2.fill_between(wet_pct.time, 0, wet_pct, alpha=0.3, color='blue')
ax2.set_title('Wet Area Percentage Over Time - Bali (SPI-12 >= +1.0)', fontsize=12)
ax2.set_ylabel('Area under wet conditions (%)')
ax2.set_ylim(0, 100)
ax2.grid(True, alpha=0.3)
ax2.legend()

plt.tight_layout()
plt.show()

The area percentage plots show how much of Bali is experiencing moderate-or-worse drought (top) or wet conditions (bottom) at each time step. Peaks reaching 100% indicate island-wide drought events.

10. Save Results to NetCDF

Code

# Save single-scale SPI
save_index_to_netcdf(spi_12, str(output_netcdf / 'spi_12_bali.nc'), compress=True, complevel=5)
print(f"SPI-12 saved to: {output_netcdf / 'spi_12_bali.nc'}")

# Save multi-scale SPI
save_index_to_netcdf(spi_multi, str(output_netcdf / 'spi_multi_scale_bali.nc'), compress=True, complevel=5)
print(f"Multi-scale SPI saved to: {output_netcdf / 'spi_multi_scale_bali.nc'}")

SPI-12 saved to: /home/runner/work/precip-index/precip-index/output/netcdf/spi_12_bali.nc

Multi-scale SPI saved to: /home/runner/work/precip-index/precip-index/output/netcdf/spi_multi_scale_bali.nc

11. Summary

Key Takeaways

Data Format: Ensure data follows CF Convention (time, lat, lon)
Calibration Period: Use 30-year period (WMO recommends 1991-2020)
Parameter Reuse: Save fitting parameters for faster processing
Time Scales: Choose based on application (1=meteorological, 3=agricultural, 6=hydrological, 12=water resources)
Distribution Choice: Gamma (default), Pearson III, or Log-Logistic — all produce consistent results (r > 0.98)
Bidirectional: SPI monitors both dry and wet extremes equally
Validation: Always visualize results before using in analysis

Recommended Workflow

# 1. Load data
ds = xr.open_dataset('precip.nc')
precip = ds['precip']

# 2. Calculate SPI with parameter saving
spi_12, params = spi(precip, scale=12, return_params=True,
                     distribution='gamma',  # or 'pearson3', 'log_logistic'
                     calibration_start_year=1991, calibration_end_year=2020)

# 3. Save parameters for reuse
save_fitting_params(params, 'params.nc', scale=12, periodicity='monthly',
                    distribution='gamma')

# 4. Reuse on new data (much faster!)
params = load_fitting_params('params.nc', scale=12, periodicity='monthly')
spi_12_new = spi(new_precip, scale=12, fitting_params=params)

# 5. Analyze both dry and wet extremes
dry_pct = get_drought_area_percentage(spi_12, threshold=-1.0)

Next Steps

Calculate SPEI - Include temperature/evapotranspiration
Event Analysis - Identify and characterize drought events
Visualization Gallery - Create publication-quality figures
