Calculate SPEI

Standardized Precipitation Evapotranspiration Index - Complete Tutorial

Author

Benny Istanto

Published

January 31, 2026

Overview

This tutorial demonstrates how to calculate the Standardized Precipitation Evapotranspiration Index (SPEI) using TerraClimate data for Bali, Indonesia (1958-2024).

What is SPEI?

Extension of SPI that includes temperature/evapotranspiration
Developed by Vicente-Serrano et al. (2010)
Uses water balance (P - PET) instead of precipitation alone
More sensitive to temperature changes and global warming
Better for agricultural and ecological drought assessment

What you’ll learn:

Load and explore precipitation, temperature, and PET data
Choose between pre-computed PET or calculating from temperature
Visualize input climate data (time series and spatial patterns)
Calculate SPEI-12 and visualize results

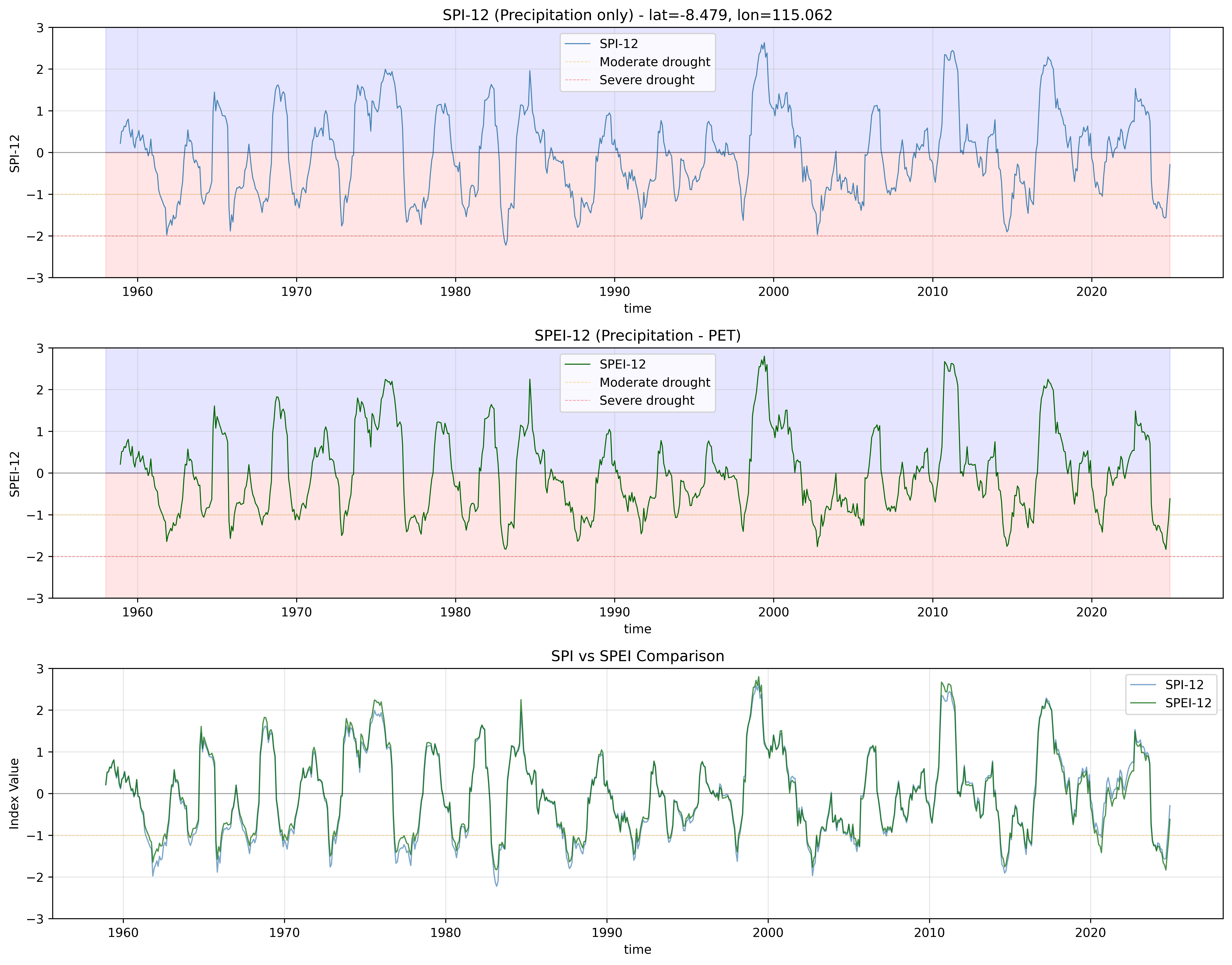

Compare SPI vs SPEI to see the effect of temperature
Calculate multi-scale SPEI (1, 3, 6, 12 months)
Use different probability distributions (Gamma, Pearson III, Log-Logistic)
Spatial analysis of drought conditions

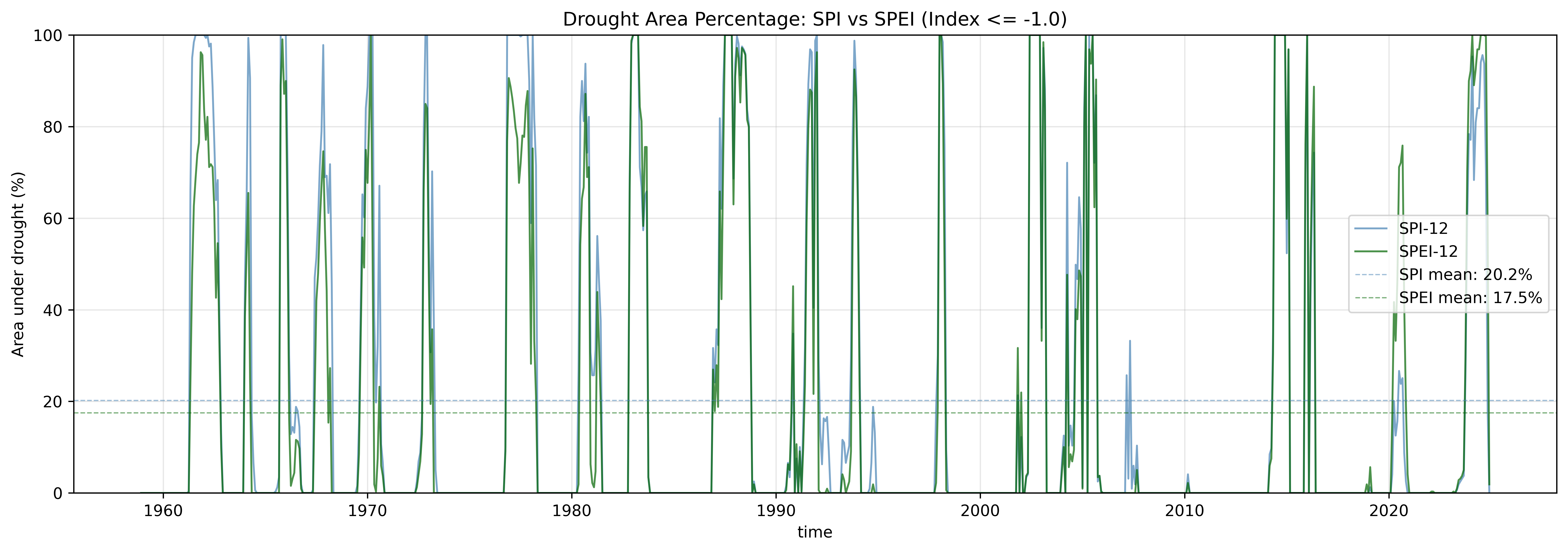

Drought area percentage comparison (SPI vs SPEI)
Save and reuse fitting parameters
Save results to NetCDF

Why SPEI?

SPEI extends SPI by incorporating potential evapotranspiration (PET):

SPI = Precipitation only
SPEI = Precipitation - PET (water balance)

SPEI is more sensitive to temperature increases and climate change impacts.

1. Setup and Imports

Code

import sys
import os
from pathlib import Path

# Get the notebook directory and find the repository root
notebook_dir = Path.cwd()
repo_root = notebook_dir
while not (repo_root / 'src').exists() and repo_root != repo_root.parent:
    repo_root = repo_root.parent

# Add src to path
src_path = str(repo_root / 'src')
if src_path not in sys.path:
    sys.path.insert(0, src_path)

import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
from datetime import datetime

# Import SPEI and SPI functions
from indices import (
    spi,
    spei,
    spei_multi_scale,
    save_fitting_params,
    load_fitting_params,
    save_index_to_netcdf,
    get_drought_area_percentage
)
from utils import calculate_pet
from visualization import plot_index
from config import Periodicity, DISTRIBUTION_DISPLAY_NAMES

# Plotting settings
plt.rcParams['figure.figsize'] = (12, 6)
plt.rcParams['font.size'] = 10

# Create output directories
output_plots = repo_root / 'output' / 'plots'
output_netcdf = repo_root / 'output' / 'netcdf'
output_plots.mkdir(parents=True, exist_ok=True)
output_netcdf.mkdir(parents=True, exist_ok=True)

print("All imports successful!")
print(f"Repository root: {repo_root}")

All imports successful!
Repository root: /home/runner/work/precip-index/precip-index

2. Configuration

Choose your PET input method and set calculation parameters.

You have THREE options for SPEI calculation:

Option A: Use pre-computed PET (recommended if available) — faster, uses existing PET from TerraClimate
Option B: Calculate PET from temperature (Thornthwaite) — requires only mean temperature data
Option C: Calculate PET using Hargreaves — requires Tmin/Tmax data, better for arid regions

Code

# ========================================
# USER CONFIGURATION
# ========================================

# Choose PET input method
use_precomputed_pet = False  # Set True for pre-computed PET, False to calculate from temperature

# File paths
precip_file = repo_root / 'input' / 'terraclimate_bali_ppt_1958_2024.nc'
pet_file = repo_root / 'input' / 'terraclimate_bali_pet_1958_2024.nc'
temp_file = repo_root / 'input' / 'terraclimate_bali_tmean_1958_2024.nc'

# Variable names in your NetCDF files
precip_var = 'ppt'
pet_var = 'pet'
temp_var = 'tmean'

# Calibration period (WMO standard: 1991-2020)
calib_start = 1991
calib_end = 2020
data_start_year = 1958

print("Configuration:")
print(f"  PET method: {'Pre-computed' if use_precomputed_pet else 'Calculate from temperature'}")
print(f"  Calibration period: {calib_start}-{calib_end}")
print(f"  Output directory: {output_netcdf}")

Configuration:
  PET method: Calculate from temperature
  Calibration period: 1991-2020
  Output directory: /home/runner/work/precip-index/precip-index/output/netcdf

PET Calculation Methods

The spei() function accepts:

pet= parameter for pre-computed PET values (e.g., from TerraClimate)
temperature= + latitude= to auto-calculate PET using Thornthwaite method (default)
temperature= + temp_min= + temp_max= + latitude= + pet_method='hargreaves' for Hargreaves-Samani method

Thornthwaite is simpler (requires only mean temperature), while Hargreaves performs better in arid/semi-arid regions and correlates better with physically-based PET like Penman-Monteith.

3. Load Climate Data

Code

# Load precipitation data
print("Loading precipitation data...")
ds_precip = xr.open_dataset(precip_file)
precip = ds_precip[precip_var]

print("Precipitation data loaded")
print(f"  Shape: {precip.shape}")
print(f"  Time range: {precip.time.min().values} to {precip.time.max().values}")
print(f"  Spatial extent: lat [{precip.lat.min().values:.2f}, {precip.lat.max().values:.2f}], "
      f"lon [{precip.lon.min().values:.2f}, {precip.lon.max().values:.2f}]")
print(f"  Mean: {precip.mean().values:.1f} mm/month")
print(f"  Range: [{precip.min().values:.1f}, {precip.max().values:.1f}] mm/month")

Loading precipitation data...
Precipitation data loaded
  Shape: (804, 24, 35)
  Time range: 1958-01-01T00:00:00.000000000 to 2024-12-01T00:00:00.000000000
  Spatial extent: lat [-8.94, -7.98], lon [114.35, 115.77]
  Mean: 158.6 mm/month
  Range: [0.0, 1004.7] mm/month

Code

# Load PET data (Option A) or Temperature data (Option B)
if use_precomputed_pet:
    print("\nLoading pre-computed PET data...")
    ds_pet = xr.open_dataset(pet_file)
    pet = ds_pet[pet_var]

    print("PET data loaded")
    print(f"  Shape: {pet.shape}")
    print(f"  Mean: {pet.mean().values:.1f} mm/month")
    print(f"  Range: [{pet.min().values:.1f}, {pet.max().values:.1f}] mm/month")

    temperature = None
else:
    print("\nLoading temperature data for PET calculation...")
    ds_temp = xr.open_dataset(temp_file)
    temperature = ds_temp[temp_var]

    print("Temperature data loaded")
    print(f"  Shape: {temperature.shape}")
    print(f"  Mean: {temperature.mean().values:.1f} deg C")
    print(f"  Range: [{temperature.min().values:.1f}, {temperature.max().values:.1f}] deg C")

    pet = None


Loading temperature data for PET calculation...
Temperature data loaded
  Shape: (804, 24, 35)
  Mean: 24.5 deg C
  Range: [14.6, 29.9] deg C

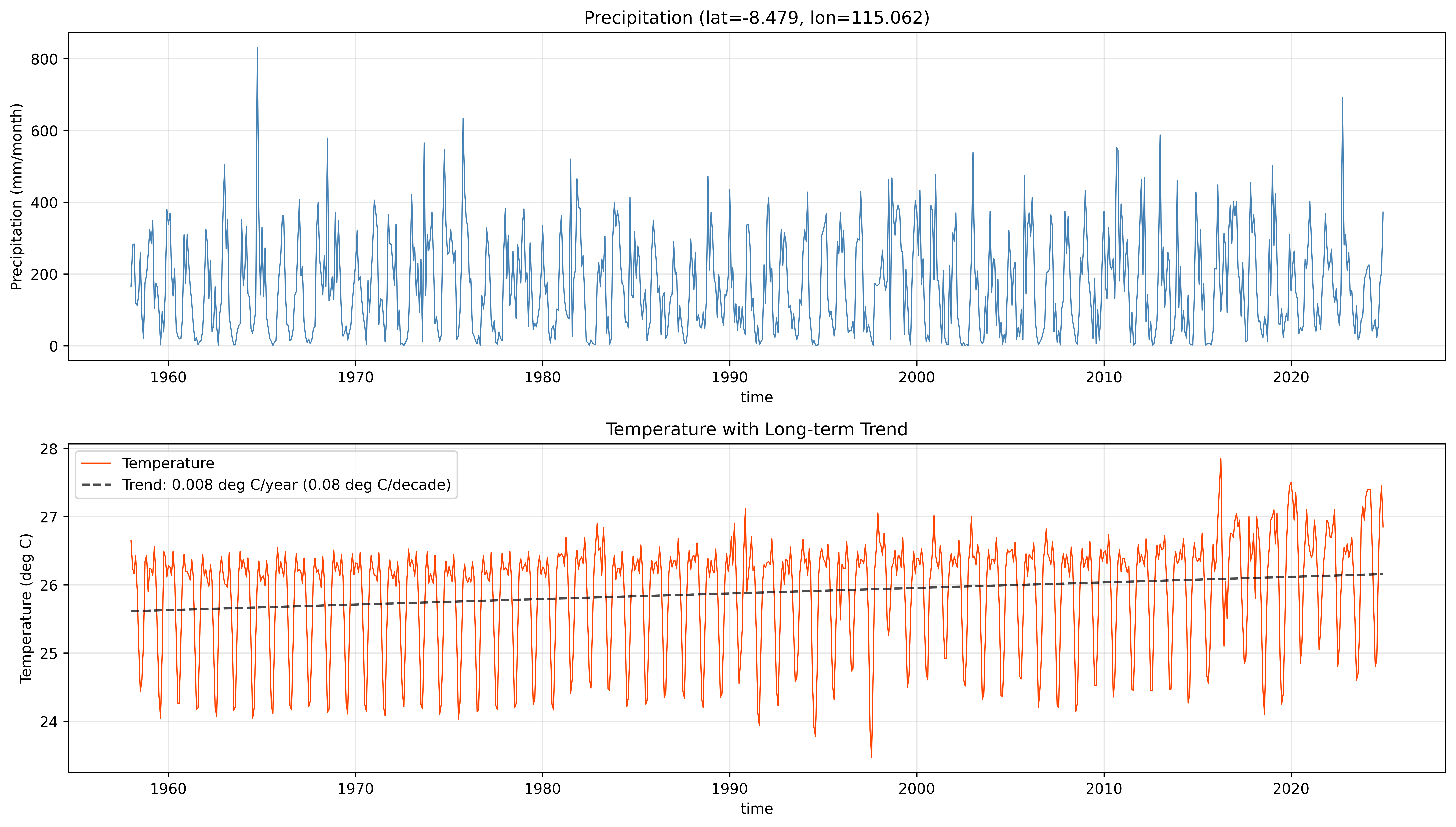

4. Visualize Climate Data

Examine the climate data at a sample location before calculating SPEI.

Code

# Select a sample location (center of domain)
sample_lat_idx = len(precip.lat) // 2
sample_lon_idx = len(precip.lon) // 2
sample_lat = precip.lat[sample_lat_idx].values
sample_lon = precip.lon[sample_lon_idx].values

print(f"Sample location: lat={sample_lat:.3f}, lon={sample_lon:.3f}")

Sample location: lat=-8.479, lon=115.062

Code

if use_precomputed_pet:
    # Show Precipitation, PET, and Water Balance
    fig, axes = plt.subplots(3, 1, figsize=(14, 10))

    # Precipitation
    precip[:, sample_lat_idx, sample_lon_idx].plot(ax=axes[0], linewidth=0.8, color='steelblue')
    axes[0].set_title(f'Precipitation (lat={sample_lat:.3f}, lon={sample_lon:.3f})')
    axes[0].set_ylabel('Precipitation (mm/month)')
    axes[0].grid(True, alpha=0.3)

    # PET
    pet[:, sample_lat_idx, sample_lon_idx].plot(ax=axes[1], linewidth=0.8, color='orangered')
    axes[1].set_title('Potential Evapotranspiration (PET)')
    axes[1].set_ylabel('PET (mm/month)')
    axes[1].grid(True, alpha=0.3)

    # Water Balance (P - PET)
    water_balance = precip - pet
    wb = water_balance[:, sample_lat_idx, sample_lon_idx]
    wb.plot(ax=axes[2], linewidth=0.8, color='darkgreen')
    axes[2].axhline(y=0, color='k', linestyle='-', linewidth=0.8, alpha=0.3)
    axes[2].fill_between(wb.time, 0, wb, where=(wb >= 0), alpha=0.3, color='blue', label='Surplus')
    axes[2].fill_between(wb.time, 0, wb, where=(wb < 0), alpha=0.3, color='red', label='Deficit')
    axes[2].set_title('Water Balance (P - PET)')
    axes[2].set_ylabel('P - PET (mm/month)')
    axes[2].grid(True, alpha=0.3)
    axes[2].legend()

    plt.tight_layout()
    plt.show()

    # Statistics
    print(f"\nWater Balance Statistics:")
    print(f"  Mean P: {precip.mean().values:.1f} mm/month")
    print(f"  Mean PET: {pet.mean().values:.1f} mm/month")
    print(f"  Mean (P-PET): {water_balance.mean().values:.1f} mm/month")
    deficit_frac = float((water_balance < 0).sum() / water_balance.size)
    print(f"  Deficit months: {int((water_balance < 0).sum())} ({100*deficit_frac:.1f}%)")

else:
    # Show Precipitation and Temperature
    fig, axes = plt.subplots(2, 1, figsize=(14, 8))

    # Precipitation
    precip[:, sample_lat_idx, sample_lon_idx].plot(ax=axes[0], linewidth=0.8, color='steelblue')
    axes[0].set_title(f'Precipitation (lat={sample_lat:.3f}, lon={sample_lon:.3f})')
    axes[0].set_ylabel('Precipitation (mm/month)')
    axes[0].grid(True, alpha=0.3)

    # Temperature with trend
    temp_series = temperature[:, sample_lat_idx, sample_lon_idx]
    temp_series.plot(ax=axes[1], linewidth=0.8, color='orangered', label='Temperature')

    # Add trend line
    x = np.arange(len(temp_series))
    valid_mask = ~np.isnan(temp_series.values)
    if valid_mask.sum() > 0:
        z = np.polyfit(x[valid_mask], temp_series.values[valid_mask], 1)
        p = np.poly1d(z)
        axes[1].plot(temp_series.time, p(x), 'k--', linewidth=1.5, alpha=0.7,
                     label=f'Trend: {z[0]*12:.3f} deg C/year ({z[0]*120:.2f} deg C/decade)')

    axes[1].set_title('Temperature with Long-term Trend')
    axes[1].set_ylabel('Temperature (deg C)')
    axes[1].grid(True, alpha=0.3)
    axes[1].legend()

    plt.tight_layout()
    plt.show()

    print(f"\nTemperature Statistics:")
    print(f"  Mean: {temperature.mean().values:.1f} deg C")
    print(f"  Range: [{temperature.min().values:.1f}, {temperature.max().values:.1f}] deg C")


Temperature Statistics:
  Mean: 24.5 deg C
  Range: [14.6, 29.9] deg C

When using temperature, the trend line shows how temperatures have changed over the record. Warming trends increase PET, which affects the water balance and makes SPEI more negative relative to SPI.

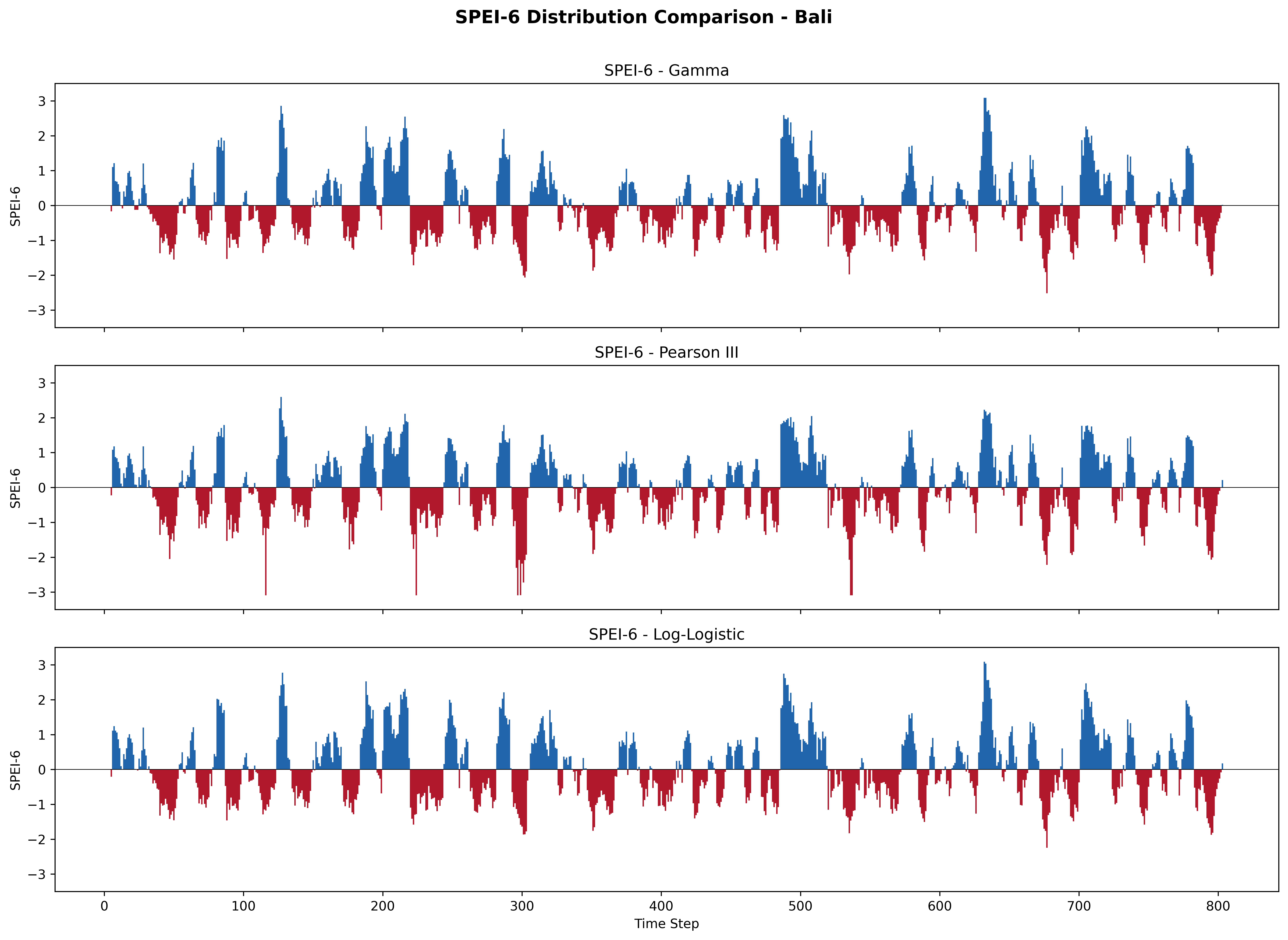

Distribution Selection for SPEI

By default, SPEI uses the Gamma distribution. For SPEI, the Pearson III or Log-Logistic distributions are also available and may better handle the water balance data (P - PET), which can be negative:

# SPEI with Pearson III
spei_6_p3 = spei(precip, pet=pet_precomputed, scale=6, distribution='pearson3')

# SPEI with Log-Logistic (as in original R SPEI package)
spei_6_ll = spei(precip, pet=pet_precomputed, scale=6, distribution='log_logistic')

5. Calculate SPEI-12

Calculate SPEI at 12-month timescale for long-term water resources monitoring.

Code

print("Calculating SPEI-12 (Gamma distribution)...")
print(f"  Method: {'Using pre-computed PET' if use_precomputed_pet else 'Calculating PET from temperature'}")

if use_precomputed_pet:
    spei_12, params = spei(
        precip=precip,
        pet=pet,
        scale=12,
        periodicity='monthly',
        calibration_start_year=calib_start,
        calibration_end_year=calib_end,
        distribution='gamma',  # Default; also supports 'pearson3', 'log_logistic'
        return_params=True
    )
else:
    spei_12, params = spei(
        precip=precip,
        temperature=temperature,
        latitude=precip.lat.values,
        scale=12,
        periodicity='monthly',
        calibration_start_year=calib_start,
        calibration_end_year=calib_end,
        distribution='gamma',  # Default; also supports 'pearson3', 'log_logistic'
        return_params=True
    )

print("SPEI-12 calculation complete!")
print(f"  Output shape: {spei_12.shape}")
print(f"  Valid range: [{float(np.nanmin(spei_12.values)):.2f}, {float(np.nanmax(spei_12.values)):.2f}]")
print(f"  Mean: {float(np.nanmean(spei_12.values)):.3f}")
print(f"  Std: {float(np.nanstd(spei_12.values)):.3f}")

Calculating SPEI-12 (Gamma distribution)...
  Method: Calculating PET from temperature

SPEI-12 calculation complete!
  Output shape: (804, 24, 35)
  Valid range: [-2.68, 2.92]
  Mean: -0.029
  Std: 0.990

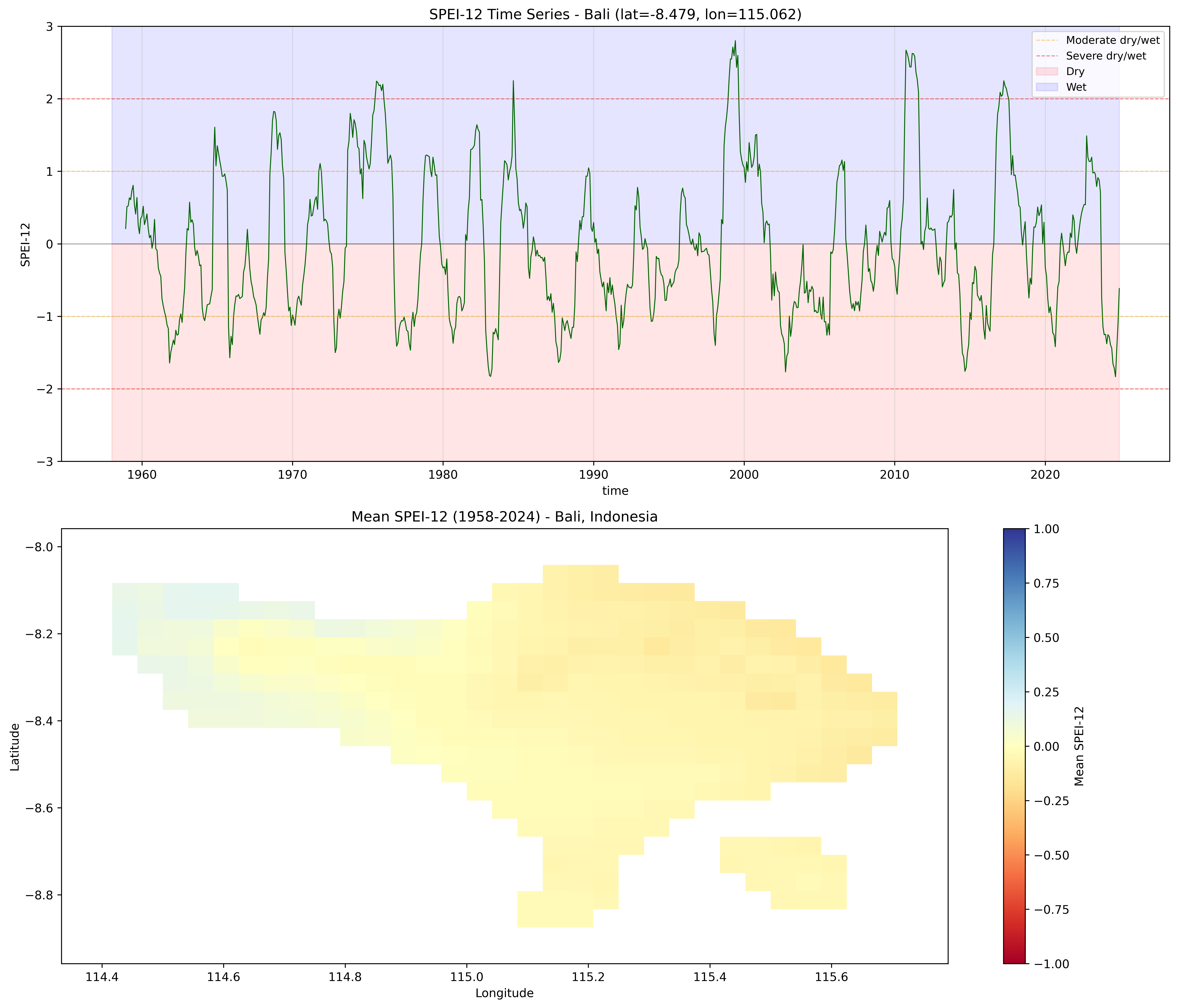

Visualize SPEI-12 Results

Code

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(14, 12))

# Time series at sample point
spei_series = spei_12[:, sample_lat_idx, sample_lon_idx]
spei_series.plot(ax=ax1, linewidth=0.8, color='darkgreen')
ax1.axhline(y=0, color='k', linestyle='-', linewidth=0.8, alpha=0.3)
ax1.axhline(y=-1.0, color='orange', linestyle='--', linewidth=0.8, alpha=0.5, label='Moderate dry/wet')
ax1.axhline(y=-2.0, color='red', linestyle='--', linewidth=0.8, alpha=0.5, label='Severe dry/wet')
ax1.axhline(y=1.0, color='orange', linestyle='--', linewidth=0.8, alpha=0.5)
ax1.axhline(y=2.0, color='red', linestyle='--', linewidth=0.8, alpha=0.5)
ax1.fill_between(spei_12.time, -10, 0, alpha=0.1, color='red', label='Dry')
ax1.fill_between(spei_12.time, 0, 10, alpha=0.1, color='blue', label='Wet')
ax1.set_title(f'SPEI-12 Time Series - Bali (lat={sample_lat:.3f}, lon={sample_lon:.3f})')
ax1.set_ylabel('SPEI-12')
ax1.set_ylim(-3, 3)
ax1.grid(True, alpha=0.3)
ax1.legend(loc='upper right', fontsize=9)

# Spatial pattern (mean over time)
spei_12.mean(dim='time').plot(ax=ax2, cmap='RdYlBu', vmin=-1, vmax=1,
                               cbar_kwargs={'label': 'Mean SPEI-12'})
ax2.set_title('Mean SPEI-12 (1958-2024) - Bali, Indonesia')
ax2.set_xlabel('Longitude')
ax2.set_ylabel('Latitude')

plt.tight_layout()
plt.show()

The top panel shows the SPEI-12 time series with threshold lines for moderate (+-1.0) and severe (+-2.0) conditions. The bottom panel shows the spatial mean SPEI-12 across Bali.

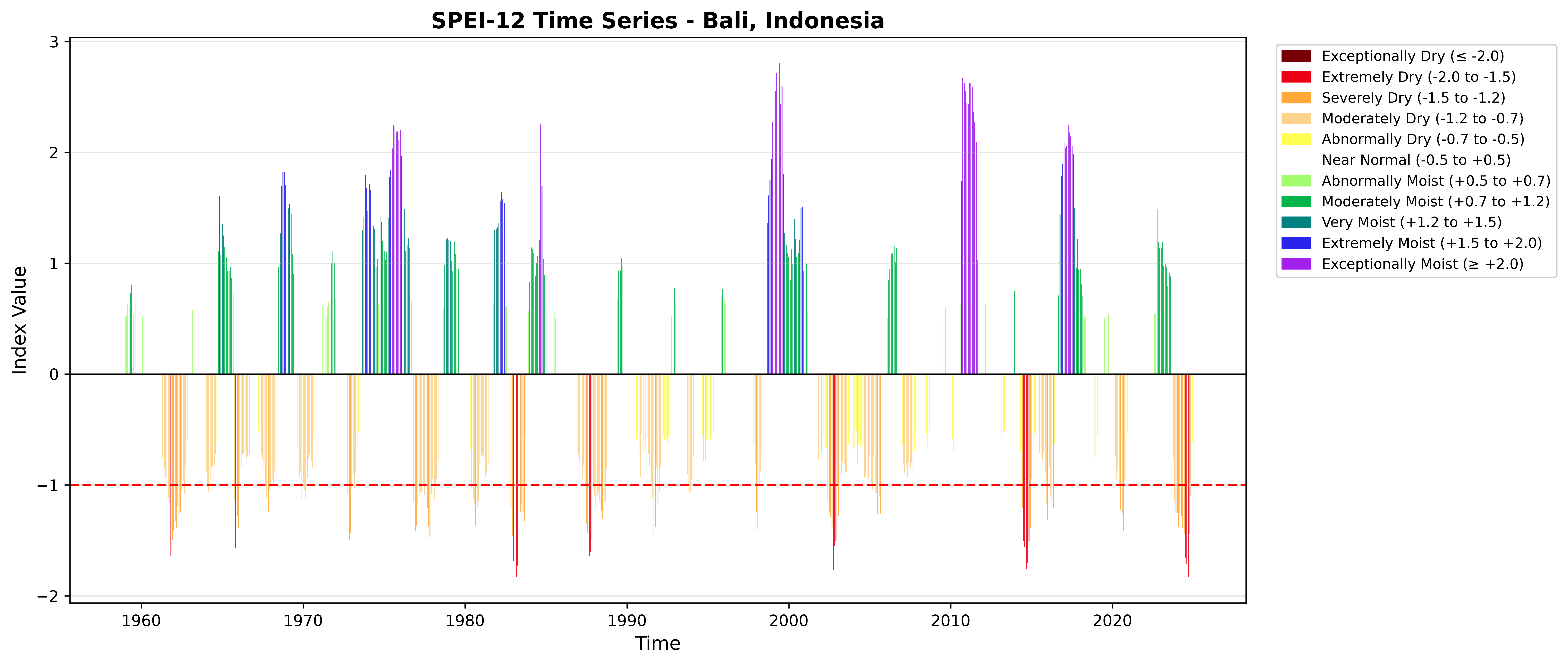

SPEI-12 with WMO Color Scheme

Code

spei_point = spei_12.isel(lat=sample_lat_idx, lon=sample_lon_idx)

fig = plot_index(
    spei_point,
    threshold=-1.0,
    title='SPEI-12 Time Series - Bali, Indonesia'
)
plt.tight_layout()
plt.show()

6. Compare SPI vs SPEI

Calculate SPI-12 and compare with SPEI-12 to see the effect of including temperature/PET.

Code

print("Calculating SPI-12 for comparison...")

spi_12 = spi(
    precip=precip,
    scale=12,
    periodicity='monthly',
    calibration_start_year=calib_start,
    calibration_end_year=calib_end
)

print("SPI-12 calculation complete!")

Calculating SPI-12 for comparison...
SPI-12 calculation complete!

Code

# Compare SPI and SPEI at sample location
fig, axes = plt.subplots(3, 1, figsize=(14, 11))

# SPI
spi_series = spi_12[:, sample_lat_idx, sample_lon_idx]
spi_series.plot(ax=axes[0], linewidth=0.8, color='steelblue', label='SPI-12')
axes[0].axhline(y=0, color='k', linestyle='-', linewidth=0.8, alpha=0.3)
axes[0].axhline(y=-1.0, color='orange', linestyle='--', linewidth=0.6, alpha=0.4, label='Moderate drought')
axes[0].axhline(y=-2.0, color='red', linestyle='--', linewidth=0.6, alpha=0.4, label='Severe drought')
axes[0].fill_between(spi_series.time, -10, 0, alpha=0.1, color='red')
axes[0].fill_between(spi_series.time, 0, 10, alpha=0.1, color='blue')
axes[0].set_title(f'SPI-12 (Precipitation only) - lat={sample_lat:.3f}, lon={sample_lon:.3f}')
axes[0].set_ylabel('SPI-12')
axes[0].set_ylim(-3, 3)
axes[0].grid(True, alpha=0.3)
axes[0].legend()

# SPEI
spei_series = spei_12[:, sample_lat_idx, sample_lon_idx]
spei_series.plot(ax=axes[1], linewidth=0.8, color='darkgreen', label='SPEI-12')
axes[1].axhline(y=0, color='k', linestyle='-', linewidth=0.8, alpha=0.3)
axes[1].axhline(y=-1.0, color='orange', linestyle='--', linewidth=0.6, alpha=0.4, label='Moderate drought')
axes[1].axhline(y=-2.0, color='red', linestyle='--', linewidth=0.6, alpha=0.4, label='Severe drought')
axes[1].fill_between(spei_series.time, -10, 0, alpha=0.1, color='red')
axes[1].fill_between(spei_series.time, 0, 10, alpha=0.1, color='blue')
axes[1].set_title('SPEI-12 (Precipitation - PET)')
axes[1].set_ylabel('SPEI-12')
axes[1].set_ylim(-3, 3)
axes[1].grid(True, alpha=0.3)
axes[1].legend()

# Overlay comparison
spi_series.plot(ax=axes[2], linewidth=1.0, color='steelblue', label='SPI-12', alpha=0.7)
spei_series.plot(ax=axes[2], linewidth=1.0, color='darkgreen', label='SPEI-12', alpha=0.7)
axes[2].axhline(y=0, color='k', linestyle='-', linewidth=0.8, alpha=0.3)
axes[2].axhline(y=-1.0, color='orange', linestyle='--', linewidth=0.6, alpha=0.4)
axes[2].set_title('SPI vs SPEI Comparison')
axes[2].set_ylabel('Index Value')
axes[2].set_ylim(-3, 3)
axes[2].grid(True, alpha=0.3)
axes[2].legend()

plt.tight_layout()
plt.show()

# Calculate statistics
valid_mask = ~(np.isnan(spi_series.values) | np.isnan(spei_series.values))
if valid_mask.sum() > 0:
    correlation = np.corrcoef(spi_series.values[valid_mask], spei_series.values[valid_mask])[0, 1]
    print(f"\nCorrelation between SPI and SPEI: {correlation:.3f}")

# Count drought months
spi_drought = int((spi_series <= -1.0).sum().values)
spei_drought = int((spei_series <= -1.0).sum().values)
total_months = len(spi_series)

print(f"\nDrought months (index <= -1.0):")
print(f"  SPI-12: {spi_drought} months ({100*spi_drought/total_months:.1f}%)")
print(f"  SPEI-12: {spei_drought} months ({100*spei_drought/total_months:.1f}%)")
print(f"  Difference: {spei_drought - spi_drought} months ({100*(spei_drought - spi_drought)/total_months:.1f}%)")


Correlation between SPI and SPEI: 0.994

Drought months (index <= -1.0):
  SPI-12: 155 months (19.3%)
  SPEI-12: 134 months (16.7%)
  Difference: -21 months (-2.6%)

SPI vs SPEI: Key Differences

SPI (Precipitation only):

Simple, requires only precipitation data
Good for meteorological drought
Does not account for temperature/evaporation
May miss agricultural drought in warming climates

SPEI (Precipitation - PET):

Accounts for temperature and evaporation
Better for agricultural and ecological drought
More sensitive to climate change
Requires temperature data or PET

When to use SPEI:

Agricultural applications (crop monitoring)
Vegetation/ecosystem monitoring
Climate change impact studies
Regions with significant temperature trends
Forest fire risk assessment

7. Multi-Scale SPEI Analysis

Different time scales capture different types of drought:

SPEI-1: Short-term meteorological
SPEI-3: Seasonal agricultural
SPEI-6: Medium-term hydrological
SPEI-12: Long-term water resources

Code

print("Calculating SPEI for scales: 1, 3, 6, 12 months...")

if use_precomputed_pet:
    spei_multi = spei_multi_scale(
        precip=precip,
        pet=pet,
        scales=[1, 3, 6, 12],
        periodicity='monthly',
        calibration_start_year=calib_start,
        calibration_end_year=calib_end
    )
else:
    spei_multi = spei_multi_scale(
        precip=precip,
        temperature=temperature,
        latitude=precip.lat.values,
        scales=[1, 3, 6, 12],
        periodicity='monthly',
        calibration_start_year=calib_start,
        calibration_end_year=calib_end
    )

print("Multi-scale SPEI calculation complete!")
print(f"  Variables: {list(spei_multi.data_vars)}")

Calculating SPEI for scales: 1, 3, 6, 12 months...

Multi-scale SPEI calculation complete!
  Variables: ['spei_gamma_1_month', 'spei_gamma_3_month', 'spei_gamma_6_month', 'spei_gamma_12_month']

Compare Different Time Scales

Code

fig, axes = plt.subplots(4, 1, figsize=(14, 13), sharex=True)

scales = [1, 3, 6, 12]
colors = ['lightgreen', 'mediumseagreen', 'seagreen', 'darkgreen']

for i, (scale, color) in enumerate(zip(scales, colors)):
    var_name = f'spei_gamma_{scale}_month'
    spei_data = spei_multi[var_name]

    spei_data[:, sample_lat_idx, sample_lon_idx].plot(
        ax=axes[i],
        linewidth=0.8,
        color=color
    )

    axes[i].axhline(y=0, color='k', linestyle='-', linewidth=0.8, alpha=0.3)
    axes[i].axhline(y=-1.0, color='orange', linestyle='--', linewidth=0.6, alpha=0.4)
    axes[i].axhline(y=-2.0, color='red', linestyle='--', linewidth=0.6, alpha=0.4)
    axes[i].axhline(y=1.0, color='orange', linestyle='--', linewidth=0.6, alpha=0.4)
    axes[i].axhline(y=2.0, color='red', linestyle='--', linewidth=0.6, alpha=0.4)
    axes[i].fill_between(spei_data.time, -10, 0, alpha=0.1, color='red')
    axes[i].fill_between(spei_data.time, 0, 10, alpha=0.1, color='blue')

    axes[i].set_title(f'SPEI-{scale}')
    axes[i].set_ylabel(f'SPEI-{scale}')
    axes[i].set_ylim(-3, 3)
    axes[i].grid(True, alpha=0.3)

    if i < 3:
        axes[i].set_xlabel('')

plt.suptitle(f'SPEI Multi-Scale Comparison (lat={sample_lat:.3f}, lon={sample_lon:.3f})',
             fontsize=14, y=0.995)
plt.tight_layout()
plt.show()

print("\nObservations:")
print("  - SPEI-1 shows high frequency variability (month-to-month)")
print("  - SPEI-12 shows smoother, longer-term trends")
print("  - Extreme events persist longer at longer time scales")


Observations:
  - SPEI-1 shows high frequency variability (month-to-month)
  - SPEI-12 shows smoother, longer-term trends
  - Extreme events persist longer at longer time scales

Time Scale Interpretation

SPEI-1: Month-to-month meteorological anomalies
SPEI-3: Seasonal agricultural drought — crop water stress
SPEI-6: Medium-term agricultural/hydrological drought
SPEI-12: Long-term hydrological drought — water resources, reservoir management

8. Multi-Distribution Support

The spei() function supports three probability distributions:

Distribution	Parameter	Fitting Method	Notes
Gamma	`'gamma'`	Method of Moments	Default, fast and robust
Pearson III	`'pearson3'`	Method of Moments	Better for skewed water balance data
Log-Logistic	`'log_logistic'`	Maximum Likelihood (MLE)	Used in the original R SPEI package

Code

# Calculate SPEI-6 with each distribution for comparison
print("Comparing SPEI-6 across distributions...")

spei6_results = {}

for dist in ['gamma', 'pearson3', 'log_logistic']:
    dist_name = DISTRIBUTION_DISPLAY_NAMES[dist]

    if use_precomputed_pet:
        spei_6 = spei(
            precip=precip, pet=pet, scale=6,
            periodicity='monthly',
            calibration_start_year=calib_start,
            calibration_end_year=calib_end,
            distribution=dist
        )
    else:
        spei_6 = spei(
            precip=precip, temperature=temperature,
            latitude=precip.lat.values, scale=6,
            periodicity='monthly',
            calibration_start_year=calib_start,
            calibration_end_year=calib_end,
            distribution=dist
        )

    spei6_results[dist] = spei_6
    print(f"  {dist_name}: range [{float(spei_6.min()):.2f}, {float(spei_6.max()):.2f}], mean={float(spei_6.mean()):.3f}")

Comparing SPEI-6 across distributions...

  Gamma: range [-3.09, 3.09], mean=-0.026

  Pearson III: range [-3.09, 3.09], mean=-0.027

  Log-Logistic: range [-2.63, 3.09], mean=0.021

Compare Distributions

Code

fig, axes = plt.subplots(3, 1, figsize=(14, 10), sharex=True, sharey=True)

for ax, dist in zip(axes, ['gamma', 'pearson3', 'log_logistic']):
    dist_name = DISTRIBUTION_DISPLAY_NAMES[dist]
    data = spei6_results[dist][:, sample_lat_idx, sample_lon_idx].values
    colors = np.where(data >= 0, '#2166ac', '#b2182b')
    ax.bar(range(len(data)), data, color=colors, width=1.0, edgecolor='none')
    ax.axhline(y=0, color='black', linewidth=0.5)
    ax.set_ylabel('SPEI-6')
    ax.set_title(f'SPEI-6 - {dist_name}')
    ax.set_ylim(-3.5, 3.5)

axes[-1].set_xlabel('Time Step')
plt.suptitle(f'SPEI-6 Distribution Comparison - Bali', fontsize=14, fontweight='bold', y=1.01)
plt.tight_layout()
plt.show()

Distribution Recommendations for SPEI

Gamma (default): Works well for most cases and is the fastest.
Pearson III: Handles skewed water balance (P - PET) data well. Recommended when your region has highly seasonal PET.
Log-Logistic: Provides better tail behavior for extreme events and is used in the original R SPEI package.

All three distributions produce highly correlated results (r > 0.98). The choice matters most for extreme event characterization.

9. Spatial Analysis

Visualize SPEI-12 spatial patterns across Bali at different time periods.

Code

fig, axes = plt.subplots(2, 2, figsize=(14, 10))
axes = axes.flatten()

# Select recent time points
time_indices = [-48, -36, -24, -12]  # 4, 3, 2, 1 years ago
titles = ['4 years ago', '3 years ago', '2 years ago', '1 year ago']

for i, (t_idx, title) in enumerate(zip(time_indices, titles)):
    time_str = str(spei_12.time[t_idx].values)[:7]  # Format: YYYY-MM

    im = axes[i].pcolormesh(
        spei_12.lon,
        spei_12.lat,
        spei_12[t_idx, :, :],
        cmap='RdYlBu',
        vmin=-2.5,
        vmax=2.5,
        shading='auto'
    )
    axes[i].set_title(f'{title} ({time_str})')
    axes[i].set_xlabel('Longitude')
    axes[i].set_ylabel('Latitude')
    axes[i].set_aspect('equal')

    cbar = plt.colorbar(im, ax=axes[i])
    cbar.set_label('SPEI-12')

plt.suptitle('SPEI-12 Spatial Patterns Over Bali', fontsize=14, y=0.995)
plt.tight_layout()
plt.show()

The spatial maps show how drought conditions vary across Bali at different time periods. The RdYlBu color scale maps red to dry conditions and blue to wet conditions. Ocean cells appear as white (no data).

10. Drought Area Percentage Comparison

Compare the percentage of area experiencing drought conditions for SPI vs SPEI.

Code

# Calculate drought area for both SPI and SPEI
print("Calculating drought area percentages...")

spi_drought_area = get_drought_area_percentage(spi_12, threshold=-1.0)
spei_drought_area = get_drought_area_percentage(spei_12, threshold=-1.0)

print("Drought area calculation complete!")

Calculating drought area percentages...
Drought area calculation complete!

Code

fig, ax = plt.subplots(figsize=(14, 5))

spi_drought_area.plot(ax=ax, linewidth=1.2, color='steelblue', label='SPI-12', alpha=0.7)
spei_drought_area.plot(ax=ax, linewidth=1.2, color='darkgreen', label='SPEI-12', alpha=0.7)

spi_mean = float(spi_drought_area.mean())
spei_mean = float(spei_drought_area.mean())

ax.axhline(y=spi_mean, color='steelblue', linestyle='--',
           linewidth=0.8, alpha=0.5, label=f'SPI mean: {spi_mean:.1f}%')
ax.axhline(y=spei_mean, color='darkgreen', linestyle='--',
           linewidth=0.8, alpha=0.5, label=f'SPEI mean: {spei_mean:.1f}%')

ax.set_title('Drought Area Percentage: SPI vs SPEI (Index <= -1.0)', fontsize=12)
ax.set_ylabel('Area under drought (%)')
ax.set_ylim(0, 100)
ax.grid(True, alpha=0.3)
ax.legend()

plt.tight_layout()
plt.show()

print(f"\nDrought Area Statistics:")
print(f"  SPI-12 mean: {spi_mean:.1f}%")
print(f"  SPEI-12 mean: {spei_mean:.1f}%")
print(f"  Difference: {(spei_mean - spi_mean):.1f}%")


Drought Area Statistics:
  SPI-12 mean: 20.2%
  SPEI-12 mean: 17.5%
  Difference: -2.7%

This comparison reveals how temperature/PET inclusion affects the drought signal. A higher mean drought area for SPEI suggests that evaporative demand is amplifying drought conditions beyond what precipitation alone would indicate.

11. Save and Reuse Fitting Parameters

Code

# Save SPEI fitting parameters for future reuse
params_file = str(output_netcdf / 'spei_gamma_params_12_month_bali.nc')

save_fitting_params(
    params,
    params_file,
    scale=12,
    periodicity='monthly',
    index_type='spei',
    calibration_start_year=calib_start,
    calibration_end_year=calib_end,
    coords={'lat': precip.lat, 'lon': precip.lon},
    distribution='gamma'
)

print(f"Parameters saved to: {params_file}")

# Load parameters
loaded_params = load_fitting_params(params_file, scale=12, periodicity='monthly')
print(f"Parameters loaded successfully")
print(f"  Alpha shape: {loaded_params['alpha'].shape}")
print(f"  Beta shape: {loaded_params['beta'].shape}")
print(f"  Prob_zero shape: {loaded_params['prob_zero'].shape}")

Parameters saved to: /home/runner/work/precip-index/precip-index/output/netcdf/spei_gamma_params_12_month_bali.nc
Parameters loaded successfully
  Alpha shape: (12, 24, 35)
  Beta shape: (12, 24, 35)
  Prob_zero shape: (12, 24, 35)

12. Save Results to NetCDF

Code

# Save SPEI-12
spei_12_file = str(output_netcdf / 'spei_12_bali.nc')
save_index_to_netcdf(spei_12, spei_12_file, compress=True, complevel=5)
print(f"SPEI-12 saved to: {spei_12_file}")

# Save multi-scale SPEI
spei_multi_file = str(output_netcdf / 'spei_multi_scale_bali.nc')
save_index_to_netcdf(spei_multi, spei_multi_file, compress=True, complevel=5)
print(f"Multi-scale SPEI saved to: {spei_multi_file}")

# If PET was calculated from temperature, save it for future use
if not use_precomputed_pet:
    pet_file_out = str(output_netcdf / 'pet_thornthwaite_bali.nc')
    pet_calculated = calculate_pet(temperature, precip.lat.values, data_start_year)
    pet_calculated.to_netcdf(pet_file_out)
    print(f"Calculated PET saved to: {pet_file_out}")

print("\nAll results saved successfully!")

SPEI-12 saved to: /home/runner/work/precip-index/precip-index/output/netcdf/spei_12_bali.nc

Multi-scale SPEI saved to: /home/runner/work/precip-index/precip-index/output/netcdf/spei_multi_scale_bali.nc
Calculated PET saved to: /home/runner/work/precip-index/precip-index/output/netcdf/pet_thornthwaite_bali.nc

All results saved successfully!

13. Summary

Key Takeaways

PET Input Options: Use pre-computed PET for accuracy, or temperature for convenience
SPI vs SPEI: SPEI captures temperature-driven drought that SPI misses
Time Scales: Choose based on application (1=meteorological, 3=agricultural, 6=hydrological, 12=water resources)
Distribution Choice: Gamma (default), Pearson III, or Log-Logistic — all produce consistent results (r > 0.98)
Climate Change: SPEI is essential for regions with warming trends
Spatial Analysis: Drought conditions vary across the landscape
Parameter Reuse: Save fitting parameters for faster operational processing

Recommended Applications

Application	Recommended Scale
Crop drought monitoring	SPEI-3 or SPEI-6
Forest fire risk	SPEI-6 or SPEI-12
Water resources management	SPEI-12 or longer
Climate change studies	Compare SPI vs SPEI trends
Vegetation stress	SPEI-3 or SPEI-6

Next Steps

Event Analysis - Identify and characterize drought events using SPEI
Visualization Gallery - Create publication-quality plots

References

McKee et al. (1993): SPI methodology
Vicente-Serrano et al. (2010): SPEI methodology
Thornthwaite (1948): PET calculation (Thornthwaite method)
Hargreaves & Samani (1985): PET calculation (Hargreaves method)
