Architecture

Module map, data flow, and the contract between config / src / notebooks.

The framework is intentionally flat: one config, a handful of focused src/ modules, and notebooks that orchestrate but never inline algorithms.

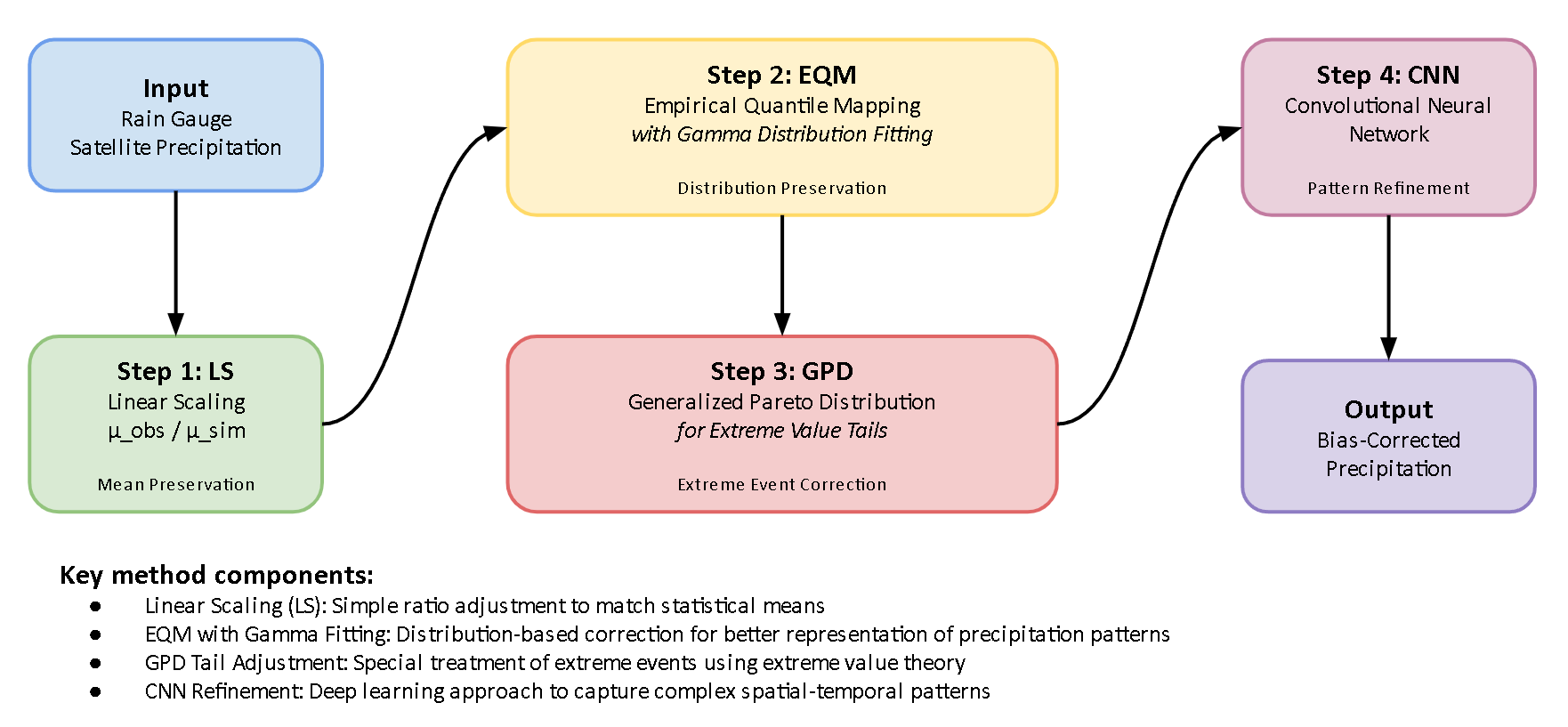

Figure 1: End-to-end workflow: data acquisition (nb00-01), bias correction (nb02), metrics (nb03), QA (nb04), station validation (nb05), and visualisation (nb06).

The contract

Layer	Owns	Does not
`config.yml`	All paths, all numeric parameters, all toggles	Hold logic
`src/`	Algorithms, data loading, IO, fitting, training	Hold paths or parameters
`notebooks/`	Orchestration, narrative, plots	Define functions

Notebooks import from src/. src/ modules read from src.config (populated by initialize_config). Nothing in src/ reads config.yml directly.

Module map

src/
  config.py                # Loads YAML, resolves placeholders, exposes attrs
  io.py                    # NetCDF loading, grid alignment, mask application
  utility.py               # Small helpers (mask apply, dekad helpers, decorators)
  bias_correction.py       # linear_scaling(), lseqm(), run_correction_pipeline()
  distribution_fitting.py  # Gamma + GPD fits, K-Fold cross-validation
  deep_learning.py         # build_cnn(), train_cnn_for_dekad(), apply_cnn()
  station_density.py       # build_confidence_mask()
  metrics.py               # 31 WMO metrics + run_metrics_pipeline()
  qa_framework.py          # CQI components + run_qa_pipeline()
  station_validation.py    # Per-station and regional validation

Data flow (one dekad)

config.yml
   |
   v
initialize_config('config.yml')
   |
   v
load_imerg / load_cpc / align_grids (src/io.py)
   |
   v
linear_scaling (src/bias_correction.py)
   |
   v
lseqm (src/bias_correction.py)
   ^   uses fit_gamma + fit_gpd from src/distribution_fitting.py
   |
   v
train_cnn_for_dekad (src/deep_learning.py)
   |
   v
apply_cnn + blend (src/bias_correction.py)
   ^   uses confidence_mask from src/station_density.py
   |
   v
write outputs to output_dirs (see Output Structure)

The run_correction_pipeline(imerg, cpc, month, dekad) wrapper in src/bias_correction.py is the single entry point that runs LS -> LSEQM -> CNN train -> blend for one dekad. Notebooks call this in a loop.

Notebooks

Notebook	Calls into
`00_define_aoi.ipynb`	n/a - utility for building AOI masks
`01_data_acquisition.ipynb`	NASA Earthdata / NOAA download helpers
`02_lseqmdl_bias_correction.ipynb`	`src.bias_correction.run_correction_pipeline`
`03_measuring_performances.ipynb`	`src.metrics.run_metrics_pipeline`
`04_qa_framework.ipynb`	`src.qa_framework.run_qa_pipeline`
`05_station_validation.ipynb`	`src.station_validation.*`
`06_visualisation_hub.ipynb`	self-contained plotting

Colab mirror

All notebooks under notebooks/ import directly from src/. On Colab the first cell clones the repository and adds it to sys.path, so from src.xxx import ... resolves transparently.
